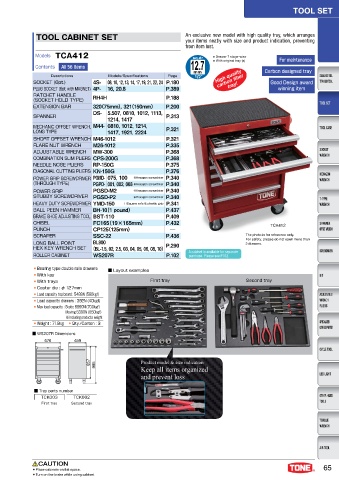

TOOL CABINET SET An exclusive new model with high quality tray, which arranges
your items neatly with size and product indication, preventing
from item lost.
Models TCA412 ● Drawer 7 stage-wise
12.7 ● With original tray (s) For maintenance
Contents All 56 Items Carbon designed tray
Descriptions Models/Specifications Page mm High quality
1/2
SOCKET (6pt.) 4S- 08, 10, 12, 13, 14, 17, 19, 21, 22, 24 P.180 carbon fiber Good Design award
tray!
PLUG SOCKET (6pt. with MAGNET) 4P- 16, 20.8 P.389 winning item
RATCHET HANDLE
(SOCKET HOLD TYPE) RH4H P.188

,
EXTENSION BAR 320（75mm）321（150mm） P.200
DS- 5.507, 0810, 1012, 1113,
SPANNER 1214, 1417 P.313
MECHANIC OFFSET WRENCH, M44- 0810, 1012, 1214,
LONG TYPE 1417, 1921, 2224 P.321
SHORT OFFSET WRENCH M46-1012 P.321
FLARE NUT WRENCH M26-1012 P.335
ADJUSTABLE WRENCH MW-300 P.368
COMBINATION SLIM PLIERS CPS-200G P.368
NEEDLE NOSE PLIERS RP-150G P.375
DIAGONAL CUTTING PLIERS KN-150G P.376
POWER GRIP SCREWDRIVER PGMD- 075, 100 ⊖Hexagon screwdriver P.340
(THROUGH TYPE) PGPD- 001, 002, 003 ⊕Hexagon screwdriver P.340
POWER GRIP PGSD-M2 ⊖Hexagon screwdriver P.340
STUBBY SCREWDRIVER PGSD-P2 ⊕Hexagon screwdriver P.340
HEAVY DUTY SCREWDRIVER YMD-150 ⊖Square axis & plastic grip P.341
BALL PEEN HAMMER BH-10（1 pound） P.437
BRAKE SHOE ADJUSTING TOOL BST-110 P.409
CHISEL FC165（19×165mm） P.432 TCA412
PUNCH CP125（125mm） ―
SCRAPER SSC-22 P.436 The photo is for reference only.
LONG BALL POINT BL900 For safety, please do not open more than
2 drawers.
HEX KEY WRENCH SET （BL-1.5, 02, 2.5, 03, 04, 05, 06, 08, 10） P.290
ROLLER CABINET WS207R P.102 A cabinet is available for separate
purchase. Please see P102.
● Bearing type double rails drawers ■ Layout examples
● With key
● With trays First tray Second tray
● Caster dia : φ 127mm
● Load capacity top board : 5488N (560kgf)
● Load capacity drawers : 392N (40kgf)
● Max load capacity : Static 6860N (700kgf)

Moving 5390N (550kgf)
※Including products weight
● Weight : 71.9kg ● Qty./Carton : 3
■ WS207R Dimensions
676 459

857 995 Product model & size indication
Keep all items organized
and prevent loss

■ Tray parts number
TCK003 TCK002
First tray Second tray

CAUTION
● Place cabinets on flat space. 65
● Turn on the brake while using cabinet.
