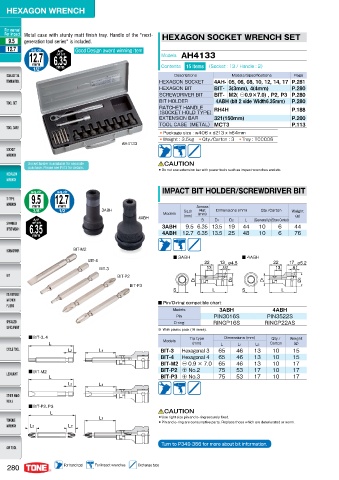

Page 282 - 日本前田TONE

For manual
For impact Metal case with sturdy matt finish tray. Handle of the "next- HEXAGON SOCKET WRENCH SET
9.5 generation tool series" is included.
12.7 Good Design award winning item
12.7 6.35 Models AH4133
mm Contents 15 Items （Socket : 13 / Handle : 2）
1/2 mm
Descriptions Models/Specifications Page
HEXAGON SOCKET 4AH- 05, 06, 08, 10, 12, 14, 17 P.281
HEXAGON BIT BIT- 3(3mm), 4(4mm) P.280
SCREWDRIVER BIT BIT- M2( ⊖0.9×7.0) , P2, P3 P.280
BIT HOLDER 4ABH (bit 2 side Width6.35mm) P.280
RATCHET HANDLE
（SOCKET HOLD TYPE） RH4H P.188
EXTENSION BAR 321(150mm) P.200
TOOL CASE（METAL） MCT3 P.113
● Package size : w406 x d213 x h64mm
● Weight : 3.5kg ● Qty./Carton : 3 ● Tray : TCC006
AH4133

Socket holder is available for separate CAUTION
purchase. Please see P113 for details.
● Do not use extension bar with power tools such as impact wrenches and etc.

IMPACT BIT HOLDER/SCREWDRIVER BIT
9.5 12.7
mm mm Across
3/8 1/2 3ABH Models Sq.dr (mm) Dimensions (mm) Qty./Carton Weight
Flat
4ABH （mm） S D1 D2 L (Generally) (Store Center) (g)
6.35 3ABH 9.5 6.35 13.5 19 44 10 6 44
mm 4ABH 12.7 6.35 13.5 25 48 10 6 76

BIT-M2
■ 3ABH ■ 4ABH
BIT-4 22 13 ø4.5 22 17 ø5.2
BIT-3 13 5.6 13 8
BIT-P2
D1 D2 D1 D2
BIT-P3
S L S L

■ Pin/O-ring compatible chart
Models 3ABH 4ABH
Pin PIN3016S PIN3522S
O-ring RINGP16S RINGP22AS
※ With plastic pack (10 items).
˙ #*5 ɺ Tip type Dimensions (mm) Qty./ Weight
L Models (mm) L L1 L2 Carton (g)
L2 L1 BIT-3 Hexagonal 3 65 46 13 10 15
BIT-4 Hexagonal 4 65 46 13 10 15
BIT-M2 ⊖ 0.9 × 7.0 65 46 13 10 17
˙ #*5 . BIT-P2 ⊕ No.2 75 53 17 10 17
L BIT-P3 ⊕ No.3 75 53 17 10 17
L2 L1

˙ #*5 1 ɺ1
L CAUTION
L1 ● Use right size pin and o-ring securely fixed.
● Pin and o-ring are consumptive parts. Replace those which are deteriorated or worm.
L2 L2

Turn to P349-366 for more about bit information.

280 'PS IBOE UPPM 'PS JNQBDU XSFODIFT &YDIBOHF UZQF
