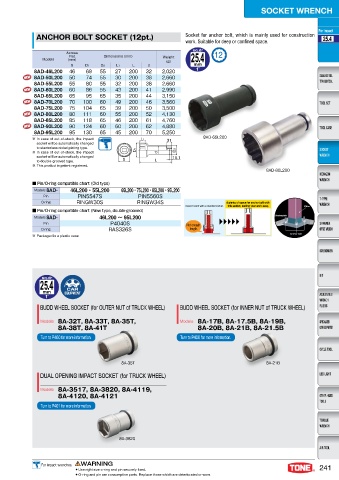

For impact
ANCHOR BOLT SOCKET (12pt.) Socket for anchor bolt, which is mainly used for construction 25.4
work. Suitable for deep or confined space.

Across 12
Flat
Models (mm) Dimensions (mm) Weight 25.4
(g)
S D1 D2 L1 L d mm
8AD-46L200 46 69 55 27 200 32 2,020 1
8AD-50L200 50 74 55 30 200 38 2,660
8AD-55L200 55 80 55 32 200 38 2,660
8AD-60L200 60 86 55 43 200 41 2,990
8AD-65L200 65 95 65 35 200 44 3,150
8AD-70L200 70 100 60 49 200 46 3,560
8AD-75L200 75 104 65 39 200 50 3,500
8AD-80L200 80 111 60 55 200 52 4,130
8AD-85L200 85 118 65 46 200 61 4,760
8AD-90L200 90 124 60 60 200 62 4,880
8AD-95L200 95 130 65 45 200 70 5,250
※ In case of out-of-stock, the impact - 8AD-65L200
socket will be automatically changed
to electroless nickel plating type.
※ In case of out-of-stock, the impact % E %
socket will be automatically changed 4
to double-grooved type. -
※ This product is patent registered.
8AD-80L200

■ Pin/O-ring compatible chart (Old type)
Models 8AD- 46L200・55L200 65L200・75L200・85L200・95L200
Pin PIN5547S PIN5560S
O-ring RINGW30S RINGW34S " QMFOUZ PG TQBDF GPS BODIPS CPMU XJUI
$BOOPU SFBDI XJUI B TUBOEBSE TPDLFU UIJT TPDLFU NBLJOH ZPVS XPSL FBTZ 1JMMBS
■ Pin/O-ring compatible chart (New type, double-grooved)
Models 8AD- 46L200 ～ 95L200 #FBSJOHQMBUF
Pin P4040S /PU FOPVHI
O-ring RAS326S MFOHUI
"ODIPS CPMU
※ Packaged in a plastic case

25.4
mm
1
BUDD WHEEL SOCKET (for OUTER NUT of TRUCK WHEEL) BUDD WHEEL SOCKET (for INNER NUT of TRUCK WHEEL)

Models 8A-32T, 8A-33T, 8A-35T, Models 8A-17B, 8A-17.5B, 8A-19B,
8A-38T, 8A-41T 8A-20B, 8A-21B, 8A-21.5B
Turn to P400 for more information. Turn to P400 for more information.

8A-35T 8A-21B
DUAL OPENING IMPACT SOCKET (for TRUCK WHEEL)

Models 8A-3517, 8A-3820, 8A-4119,
8A-4120, 8A-4121
Turn to P401 for more information.

8A-3820

'PS JNQBDU XSFODIFT WARNING
● Use right size o-ring and pin securely fixed. 241
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
