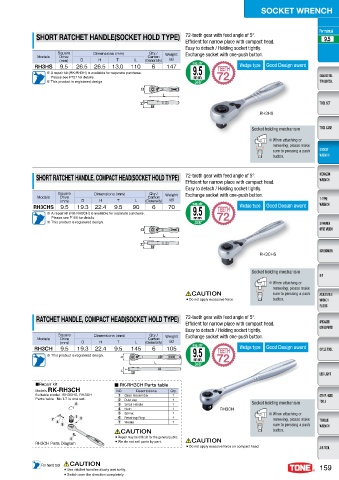

SHORT RATCHET HANDLE(SOCKET HOLD TYPE) 72-tooth gear with feed angle of 5°. 9.5
Efficient for narrow place with compact head.
Easy to detach / Holding socket tightly.
Square Dimensions (mm) Qty./ Weight Exchange socket with one-push button.
Models Drive Carton
(mm) D H T L (Generally) (g)
RH3HS 9.5 26.5 26.5 13.0 110 6 147 Wedge type Good Design award
※ A repair kit (RK-RH3H) is available for separate purchase. 9.5
Please see P157 for details. mm
※ This product is registered design. 3/8

RH3HS

Socket holding mechanism
˞When attaching or
removing, please make
sure to pressing a push
button.

SHORT RATCHET HANDLE, COMPACT HEAD(SOCKET HOLD TYPE) 72-tooth gear with feed angle of 5°.
Efficient for narrow place with compact head.
Easy to detach / Holding socket tightly.
Square Dimensions (mm) Qty./ Weight Exchange socket with one-push button.
Models Drive Carton
(mm) D H T L (Generally) (g)
RH3CHS 9.5 19.3 22.4 9.5 90 6 70 9.5 Wedge type Good Design award
※ A repair kit (RK-RH3CH) is available for separate purchase.
Please see P159 for details. mm
※ This product is registered design. 3/8

RH3CHS

Socket holding mechanism
˞When attaching or
removing, please make
CAUTION sure to pressing a push
● Do not apply excessive force. button.

RATCHET HANDLE, COMPACT HEAD(SOCKET HOLD TYPE) 72-tooth gear with feed angle of 5°.
Efficient for narrow place with compact head.
Easy to detach / Holding socket tightly.
Square Dimensions (mm) Qty./ Weight Exchange socket with one-push button.
Models Drive Carton
(mm) D H T L (Generally) (g)
RH3CH 9.5 19.3 22.4 9.5 145 6 105 9.5 Wedge type Good Design award
※ This product is registered design.
mm
3/8

■Repair kit ■ RK-RH3CH Parts table
Models RK-RH3CH NO. Descriptions Qty.
Suitable model : RH3CHS, RH3CH ● 1 Gear Assembly 1
Parts table No.1-7 is one set. ● 2 Dust cap 1
● 3 Small Handle 1 Socket holding mechanism
● 4 Bush 1 RH3CH
● 5 Spring 1 ˞When attaching or
● 6 Retaining Ring 1 removing, please make
● 7 Wedge 1
sure to pressing a push
CAUTION button.
● Repair may be difficult for the general public.
RH3CH Parts Diagram ● We do not sell parts by part. CAUTION
● Do not apply exessive force on compact head.

'PS IBOE UPPM CAUTION
● Use ratchet handles slowly and softly. 159
● Switch over the direction completely.
