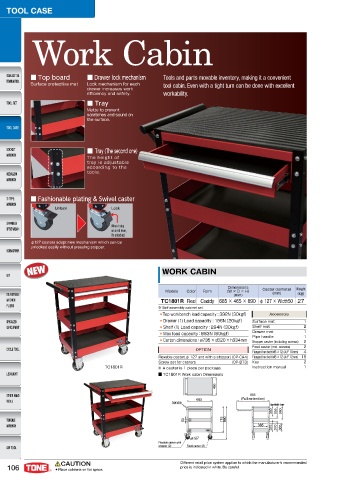

Work Cabin

■ Top board ■ Drawer lock mechanism Tools and parts movable inventory, making it a convenient
Surface protective mat Lock mechanism for each tool cabin. Even with a tight turn can be done with excellent
drawer increases work
efficiency and safety. workability.
■ Tray
Matte to prevent
scratches and sound on
the surface.

■ Tray (The second one)
The height of
tray is adjustable
according to the
tools.

■ Fashionable plating & Swivel caster
UnlockUnlock LockLock

When I step When I step
on a red lever, on a red lever,
it's unlocked.
it's unlocked.
φ127 casters adopt new mechanism which can be
unlocked easily without pressing stopper.

WORK CABIN

Dimensions Caster diameter Weight
Models Color Form (W×D×H) (mm)
(mm) (kg)
TC1801R Red Caddy 685 × 465 × 890 φ 127 × Width50 27
※ Self assembly cabinet set.
● Top workbench load capacity：392N（30kgf） Accessory
● Drawer (1) Load capacity : 196N（20kgf） Surface mat 1
● Shelf (1) Load capacity：294N（30kgf） Shelf mat 2
● Max load capacity：883N（90kgf） Drawer mat 1
● Carton dimensions：w735 × d520 × h334mm Pipe handle 1
2
Stopper caster (including screws)
Fixed caster (incl. screws) 2
OPTION
Flanged hex bolt M6 ×12 (A/F 10mm) 4
Flexable caster[φ 127 and with a stopper] (OP-CA4) Flanged hex bolt M8 ×12 (A/F 12mm) 16
Screw set for casters (OP-BT3) Key 2
TC1801R ※ A caster is 1 piece per package. Instruction manual 1
■ TC1801R Work cabin Dimensions
465
865
685 'VMM FYUFOUJPO
IBOEMF
6QQFS.JEEMF -PXFS
350 355 360
50 90 713 890
385
90 375 370 365
П127
'MFYBCMF DBTUFS XJUI
TUPQQFS 'JYFE DBTUFS

CAUTION Different retail price system appliae to which the manufacturer's recommended
106 ● Place cabinets on flat space. price is indicated in white. Be careful.
