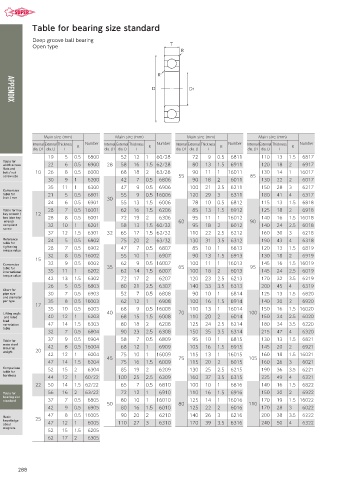

Table for bearing size standard
Deep groove ball bearing
T
Open type
R
R
D D1
APPENDIX
Main size (mm) Main size (mm) Main size (mm) Main size (mm)
Internal External Thickness Number Internal External Thickness Number Internal External Thickness Number Internal External Thickness Number
R R R R
dia. D1 dia. D T dia. D1 dia. D T dia. D1 dia. D T dia. D1 dia. D T
19 5 0.5 6800 52 12 1 60/28 72 9 0.5 6811 110 13 1.5 6817
Table for
width across 22 6 0.5 6900 28 58 16 1.5 62/28 80 13 1.5 6911 120 18 2 6917
flats and
bolt / nut 10 26 8 0.5 6000 68 18 2 63/28 90 11 1 16011 130 14 1 16017
screw size 55 85
30 9 1 6200 42 7 0.5 6806 90 18 2 6011 130 22 2 6017
35 11 1 6300 47 9 0.5 6906 100 21 2.5 6211 150 28 3 6217
Conversion
table for 21 5 0.5 6801 55 9 0.5 16006 120 29 3 6311 180 41 4 6317
inch / mm 30
24 6 0.5 6901 55 13 1.5 6006 78 10 0.5 6812 115 13 1.5 6818
Table for hex 28 7 0.5 16001 62 16 1.5 6206 85 13 1.5 6912 125 18 2 6918
key wrench / 12
hex lobe key 28 8 0.5 6001 72 19 2 6306 95 11 1 16012 140 16 1.5 16018
wrench 60 90
compliant 32 10 1 6201 58 13 1.5 60/32 95 18 2 6012 140 24 2.5 6018
screw
37 12 1.5 6301 32 65 17 1.5 62/32 110 22 2.5 6212 160 30 3 6218
Reference 24 5 0.5 6802
table for 75 20 2 63/32 130 31 3.5 6312 190 43 4 6318
tightening
torque value 28 7 0.5 6902 47 7 0.5 6807 85 10 1 6813 120 13 1.5 6819
32 8 0.5 16002 55 10 1 6907 90 13 1.5 6913 130 18 2 6919
15
Conversion 32 9 0.5 6002 62 9 0.5 16007 100 11 1 16013 145 16 1.5 16019
table for 35 65 95
international 35 11 1 6202 62 14 1.5 6007 100 18 2 6013 145 24 2.5 6019
torque value
42 13 1.5 6302 72 17 2 6207 120 23 2.5 6213 170 32 3.5 6219
26 5 0.5 6803 80 21 2.5 6307 140 33 3.5 6313 200 45 4 6319
Chart for
pipe size 30 7 0.5 6903 52 7 0.5 6808 90 10 1 6814 125 13 1.5 6820
and diameter
per type 35 8 0.5 16003 62 12 1 6908 100 16 1.5 6914 140 20 2 6920
17
35 10 0.5 6003 68 9 0.5 16008 110 13 1 16014 150 16 1.5 16020
Lifting angle 40 70 100
and rated 40 12 1 6203 68 15 1.5 6008 110 20 2 6014 150 24 2.5 6020
load
correlation 47 14 1.5 6303 80 18 2 6208 125 24 2.5 6214 180 34 3.5 6220
table
32 7 0.5 6804 90 23 2.5 6308 150 35 3.5 6314 215 47 4 6320
Table for 37 9 0.5 6904 58 7 0.5 6809 95 10 1 6815 130 13 1.5 6821
main steel
material 42 8 0.5 16004 68 12 1 6909 105 16 1.5 6915 145 20 2 6921
weight 20
42 12 1 6004 75 10 1 16009 115 13 1 16015 160 18 1.5 16021
45 75 105
47 14 1.5 6204 75 16 1.5 6009 115 20 2 6015 160 26 3 6021
Comparison
table for 52 15 2 6304 85 19 2 6209 130 25 2.5 6215 190 36 3.5 6221
hardness
44 12 1 60/22 100 25 2.5 6309 160 37 3.5 6315 225 49 4 6321
22 50 14 1.5 62/22 65 7 0.5 6810 100 10 1 6816 140 16 1.5 6822
Table for 56 16 2 63/22 72 12 1 6910 110 16 1.5 6916 150 20 2 6922
bearing size
standard 37 7 0.5 6805 80 10 1 16010 125 14 1 16016 170 19 1.5 16022
50 80 110
42 9 0.5 6905 80 16 1.5 6010 125 22 2 6016 170 28 3 6022
Basic 47 8 0.5 16005 90 20 2 6210 140 26 3 6216 200 38 3.5 6222
knowledge 25
about 47 12 1 6005 110 27 3 6310 170 39 3.5 6316 240 50 4 6322
magnets
52 15 1.5 6205
62 17 2 6305
