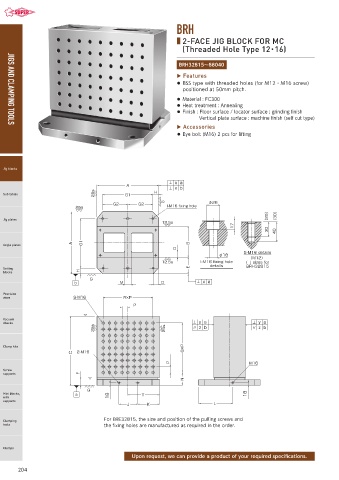

■ 2-FACE JIG BLOCK FOR MC
(Threaded Hole Type 12 ・ 16)

BRH32815～88040
Features
● BSS type with threaded holes (for M12 ・ M16 screw)
positioned at 50mm pitch.
● Material : FC300
● Heat treatment : Annealing
● Finish : Floor surface / locator surface : grinding finish
Vertical plate surface : machine finish (self cut type)
Accessories
JIGS AND CLAMPING TOOLS
● Eye bolt (M16) 2 pcs for lifting

Jig blocks

Sub tables
I-M16 fixing hole

Jig plates

Angle plates
S-M16 details
I-M16 fixing hole ( ) sizes for
details BRH32815
Setting
blocks

Precision
vises

Vacuum
chucks

Clamp kits

Screw
supports

Mini blocks,
mini
supports

Clamping For BRE32815, the size and position of the pulling screws and
tools the fixing holes are manufactured as required in the order.

Clamps
Upon request, we can provide a product of your required specifications.
