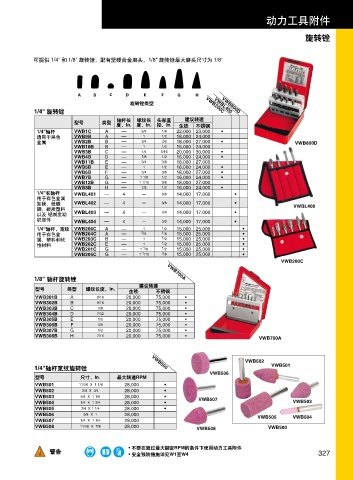

Page 329 - 实耐宝中文2012-CAT1200

动力工具附件

旋转锉

可提供 1/4" 和 1/8" 旋转锉，配有坚硬合金磨头。1/8" 旋转锉最大磨头尺寸为 1/8"

旋转锉类型 VWB200C
1/4" 旋转锉
VWB800D
VWBL400
轴杆长 螺纹长 头部直 建议转速
型号 类型 度，In. 度，In. 径，In. 生铁 不锈钢
1/4"轴杆 VWB1C A — 5/8 1/4 22,000 23,000 •
通用于黑色 VWB9B A — 1 1/2 16,000 24,000
金属 VWB2B B — LFGD02 3/4 3/8 18,000 27,000 • VWB800D
VWB10B B — 1 1/2 16,000 24,000
VWB3B C — 1/4 5/16 20,000 30,000 •
VWB4B D — 7/8 1/2 16,000 24,000 •
VWB11B E — 3/4 3/8 18,000 27,000
VWB5B E — 1 1/2 16,000 24,000 •
VWB6B F — 3/4 3/8 18,000 27,000 •
VWB7B G — 1 1/8 1/2 16,000 24,000 •
VWB12B G — 1 1/16 3/8 18,000 27,000
VWB8B H — 7/8 1/2 16,000 24,000 •
1/4"长轴杆 VWBL401 — 4 — 3/8 14,000 17,000 •
用于有色金属
如镁，低碳 VWBL402 — 4 — 3/8 14,000 17,000 • VWBL400
钢、硬质塑料
以及 铝制发动 VWBL403 — 4 — 3/8 14,000 17,000 •
机部件 VWBL404 — 4 — 3/8 14,000 17,000 •
1/4"轴杆，宽纹 VWB206C A — 1 1 /2 15,000 25,000 •
用于有色金 VWB204C A — 3 /4 1 /4 15,000 25,000 •
属，塑料和软 VWB203C B — 1 1 /2 15,000 25,000 •
性材料 VWB202C E — 1 1 /2 15,000 25,000 •
VWB201C G — 1 1 /8 1 /2 15,000 25,000 •
VWB205C G — 1 1 /16 3 /8 15,000 25,000 •
VWB200C

1/8" 轴杆旋转锉 VWB700A
建议转速
型号 类型 螺纹长度，In.
生铁 不锈钢
VWB301B A 9/16 20,000 75,000 •
VWB302B B 9/16 20,000 75,000 •
VWB303B C 1/8 20,000 75,000 •
VWB304B D 7/32 20,000 75,000 •
VWB305B E 1/2 20,000 75,000 •
VWB306B F 3/8 20,000 75,000 •
VWB307B G 1/2 20,000 75,000 •
VWB308B H 7/16 20,000 75,000 • VWB700A

VWB502
VWB501
1/4"轴杆宽纹旋转锉
VWB500
VWB506
型号 尺寸，In. 最大转速RPM
VWB501 11/16 X 1 1/4 28,000 •
VWB502 3/4 X 3/4 28,000 •
VWB503 3/4 X 1 1/8 28,000 • VWB507
VWB504 1/4 X 1 3/4 28,000 • VWB503
VWB505 3/4 X 1 1/4 28,000 •
VWB506 3/8 X 1 28,000 VWB505 VWB504
VWB507 1/4 X 1 1/4 28,000
VWB508 11/16 X 7/8 28,000 VWB508 VWB500
XPLOSION
WA
WARNING FIRE WARNING FALLING FIRE GEARSRNING FALLING XPLOSION FIRE GEARS VIBRATE FALLING XPLOSION SHOCK GEARS VIBRATE TRIANGL E SHOCK VIBRATE TRIANGL E SHOCK TRIANGL E
• 不要在超过最大额定RPM的条件下使用动力工具附件
警告 • 安全预防措施详见W1至W4 327
