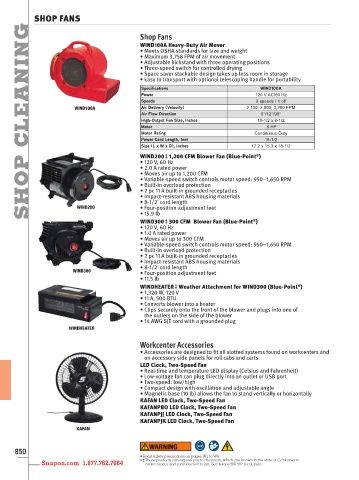

Page 852 - 实耐宝完整US版1500

SHOP FANS
CLEANING
Shop Fans
WIND100A Heavy-Duty Air Mover
• Meets OSHA standards for size and weight
• Maximum 3,758 FPM of air movement
• Adjustable kickstand with three operating positions
• Three-speed switch for controlled drying
• Space saver stackable design takes up less room in storage
• Easy to transport with optional telescoping handle for portability
Specifications WIND100A
Power 120 V AC/60 Hz
Speeds 3 speeds / 1 off
WIND100A Air Delivery (Velocity) 2,100; 3,000; 3,200 FPM
Air Flow Direction 0°/12°/90°
High-Output Fan Size, inches 10-1/2 x 8-1/2
Motor .6 HP
Motor Rating Continuous-Duty
Power Cord Length, feet 18-1/2
Size (L x W x D), inches 17.2 x 15.3 x 18-1/2
®
WIND200 ‡ 1,200 CFM Blower Fan (Blue-Point )
SHOP • 2.0 A rated power
• 120 V, 60 Hz
• Moves air up to 1,200 CFM
• Variable-speed switch controls motor speed: 950–1,650 RPM
• Built-in overload protection
• 2 pc 11 A built-in grounded receptacles
• Impact-resistant ABS housing materials
• 8-1/2ʹ cord length
• Four-position adjustment feet
WIND200
• 15.9 lb
WIND300 ‡ 300 CFM Blower Fan (Blue-Point )
®
• 120 V, 60 Hz
• 1.0 A rated power
• Moves air up to 300 CFM
• Variable-speed switch controls motor speed: 950–1,650 RPM
• Built-in overload protection
• 2 pc 11 A built-in grounded receptacles
• Impact-resistant ABS housing materials
• 8-1/2ʹ cord length
WIND300
• Four-position adjustment feet
• 11.5 lb
WINDHEATER ‡ Weather Attachment for WIND300 (Blue-Point )
®
• 1,320 W, 120 V
• 11 A, 500 BTU
• Converts blower into a heater
• Clips securely onto the front of the blower and plugs into one of
the outlets on the side of the blower
• 14 AWG SJT cord with a grounded plug
WINDHEATER

Workcenter Accessories
• Accessories are designed to fit all slotted systems found on workcenters and
on accessory side panels for roll cabs and carts
LED Clock, Two-Speed Fan
• Real-time and temperature LED display (Celsius and Fahrenheit)
• Low-voltage fan can plug directly into an outlet or USB port
• Two-speed: low/high
• Compact design with oscillation and adjustable angle
• Magnetic base (10 lb) allows the fan to stand vertically or horizontally
KAFAN LED Clock, Two-Speed Fan
KAFANPBO LED Clock, Two-Speed Fan
KAFANPJJ LED Clock, Two-Speed Fan
KAFANPJK LED Clock, Two-Speed Fan
KAFAN

850
• Read safety precautions on pages W1 to W4
• ‡ These products can expose you to chemicals which are known to the state of California to
cause cancer and reproductive harm. See pages 906-907 for details.
