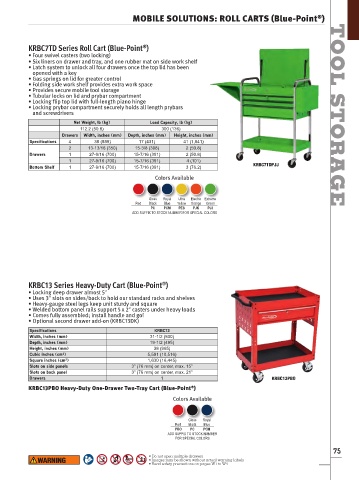

MOBILE SOLUTIONS: ROLL CARTS (Blue-Point )
®

®
KRBC7TD Series Roll Cart (Blue-Point )
• Four swivel casters (two locking) TOOL
• Six liners on drawer and tray, and one rubber mat on side work shelf
• Latch system to unlock all four drawers once the top lid has been
opened with a key
• Gas springs on lid for greater control
• Folding side work shelf provides extra work space
TOOL
• Provides secure mobile tool storage
• Tubular locks on lid and prybar compartment
• Locking flip top lid with full-length piano hinge
• Locking prybar compartment securely holds all length prybars
and screwdrivers
Net Weight, lb (kg) Load Capacity, lb (kg)
112.2 (50.8) 300 (136)
Drawers Width, inches (mm) Depth, inches (mm) Height, inches (mm)
Specifications 4 35 (889) 17 (431) 41 (1,041)
2 13-13/16 (350) 15-3/8 (398) 2 (50.8) STORAGE
Drawers 1 27-9/16 (700) 15-7/16 (391) 2 (50.8)
1 27-9/16 (700) 15-7/16 (391) 4 (101)
Bottom Shelf 1 27-9/16 (700) 15-7/16 (391) 3 (76.2) KRBC7TDPJJ
Colors Available

Gloss Royal Ultra Electric Extreme
Red Black Blue Yellow Orange Green
PC PCM PES PJK PJJ
STORAGE
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

KRBC13 Series Heavy-Duty Cart (Blue-Point )
®
• Locking deep drawer almost 5ʺ
• Uses 3ʺ slots on sides/back to hold our standard racks and shelves
• Heavy-gauge steel legs keep unit sturdy and square
• Welded bottom panel rails support 5 x 2ʺ casters under heavy loads
• Comes fully assembled; install handle and go!
• Optional second drawer add-on (KRBC13DK)
Specifications KRBC13
Width, inches (mm) 31-1/2 (800)
Depth, inches (mm) 19-1/2 (495)
Height, inches (mm) 38 (965)
Cubic inches (cm³) 5,591 (10,516)
Square inches (cm²) 1,630 (16,445)
Slots on side panels 3" (76 mm) on center, max. 15"
Slots on back panel 3" (76 mm) on center, max. 21"
Drawers 1 KRBC13PBO
KRBC13PBO Heavy-Duty One-Drawer Two-Tray Cart (Blue-Point )
®
Colors Available

Gloss Royal
Red Black Blue
PBO PC PCM
ADD SUFFIX TO STOCK NUMBER
FOR SPECIAL COLORS
75 75
• Do not open multiple drawers
• Images may be shown without actual warning labels
• Read safety precautions on pages W1 to W4
