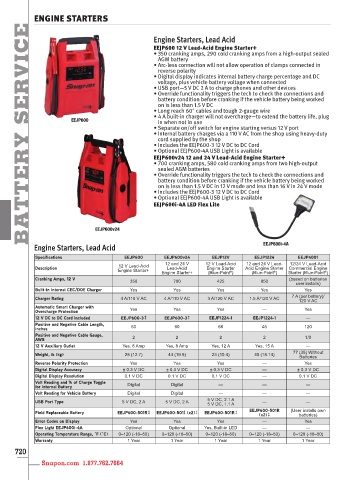

Page 722 - 实耐宝完整US版1500

SERVICE ENGINE STARTERS Engine Starters, Lead Acid

EEJP600 12 V Lead-Acid Engine Starter+
• 350 cranking amps, 290 cold cranking amps from a high-output sealed
AGM battery
• Arc-less connection will not allow operation of clamps connected in
reverse polarity
• Digital display indicates internal battery charge percentage and DC
voltage, plus vehicle battery voltage when connected
• USB port—5 V DC 2 A to charge phones and other devices
• Override functionality triggers the tech to check the connections and
battery condition before cranking if the vehicle battery being worked
on is less than 1.5 V DC
• Long reach 60ʺ cables and tough 2-gauge wire
• 4 A built-in charger will not overcharge—to extend the battery life, plug
EEJP600
in when not in use
• Separate on/off switch for engine starting versus 12 V port
• Internal battery charges via a 110 V AC from the shop using heavy-duty
BATTERY
cord supplied by the shop
• Includes the EEJP600-3 12 V DC to DC Cord
• Optional EEJP600-4A USB Light is available
EEJP600v24 12 and 24 V Lead-Acid Engine Starter+
• 700 cranking amps, 580 cold cranking amps from two high-output
sealed AGM batteries
• Override functionality triggers the tech to check the connections and
battery condition before cranking if the vehicle battery being worked
on is less than 1.5 V DC in 12 V mode and less than 16 V in 24 V mode
• Includes the EEJP600-3 12 V DC to DC Cord
• Optional EEJP600-4A USB Light is available
EEJP600i-4A LED Flex Lite

EEJP600v24

EEJP600i-4A
Engine Starters, Lead Acid
Specifications EEJP600 EEJP600v24 EEJP12V EEJP1224 EEJP4001
12 and 24 V 12 V Lead-Acid 12 and 24 V Lead- 12/24 V Lead-Acid
12 V Lead-Acid
Description Engine Starter+ Lead-Acid Engine Starter Acid Engine Starter Commercial Engine
Engine Starter+ (Blue-Point ) (Blue-Point ) Starter (Blue-Point )
®
®
®
Cranking Amps, 12 V 350 700 425 850 (based on batteries
user installs)
Built-In Internal CEC/DOE Charger Yes Yes Yes Yes Yes
Charger Rating 4 A/110 V AC 4 A/110 V AC 3 A/120 V AC 1.5 A/120 V AC 7 A (per battery)/
120 V AC
Automatic Smart Charger with
Overcharge Protection Yes Yes Yes — Yes
12 V DC to DC Cord Included EEJP600-3 ‡ EEJP600-3 ‡ EEJP1224-1 EEJP1224-1 —
Positive and Negative Cable Length,
inches 60 60 68 46 120
Positive and Negative Cable Gauge,
AWG 2 2 2 2 1/0
12 V Auxiliary Outlet Yes, 8 Amp Yes, 8 Amp Yes, 12 A Yes, 15 A —
77 (35) Without
Weight, lb (kg) 28 (12.7) 44 (19.9) 23 (10.4) 40 (18.14) Batteries
Reverse Polarity Protection Yes Yes Yes — Yes
Digital Display Accuracy ± 0.3 V DC ± 0.3 V DC ± 0.3 V DC — ± 0.3 V DC
Digital Display Resolution 0.1 V DC 0.1 V DC 0.1 V DC — 0.1 V DC
Volt Reading and % of Charge Toggle Digital Digital — — —
for Internal Battery
Volt Reading for Vehicle Battery Digital Digital — — —
5 V DC, 2.1 A
USB Port Type 5 V DC, 2 A 5 V DC, 2 A — —
5 V DC, 1.1 A
Field Replaceable Battery EEJP600-501R ‡ EEJP600-501‡ (x2) ‡ EEJP600-501R ‡ EEJP600-501R (User installs own
(x2) ‡
batteries)
Error Codes on Display Yes Yes Yes — Yes
Flex Light EEJP600i-4A Optional Optional Yes, Built-in LED — —
Operating Temperature Range, °F (°C) 0–120 (-18–50) 0–120 (-18–50) 0–120 (-18–50) 0–120 (-18–50) 0–120 (-18–50)
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year
