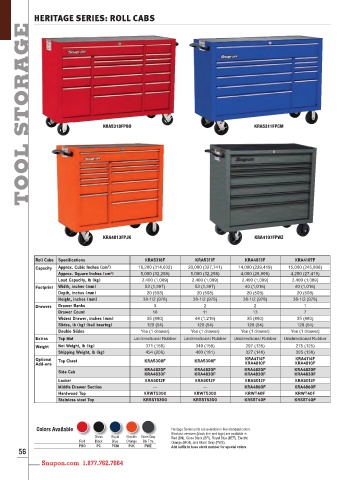

Page 58 - 实耐宝完整US版1500

HERITAGE SERIES: ROLL CABS
STORAGE

KRA5318FPBO KRA5311FPCM

TOOL

KRA4813FPJK KRA4107FPWZ

Roll Cabs Specifications KRA5318F KRA5311F KRA4813F KRA4107F
3
Capacity Approx. Cubic Inches (cm ) 19,200 (314,632) 20,000 (327,741) 14,000 (229,419) 15,000 (245,806)
2
Approx. Square Inches (cm ) 5,000 (32,258) 5,000 (32,258) 4,000 (25,806) 4,250 (27,419)
Load Capacity, lb (kg) 2,400 (1,089) 2,400 (1,089) 2,400 (1,089) 2,400 (1,089)
Footprint Width, inches (mm) 53 (1,397) 53 (1,397) 40 (1,016) 40 (1,016)
Depth, inches (mm) 20 (508) 20 (508) 20 (508) 20 (508)
Height, inches (mm) 38-1/2 (978) 38-1/2 (978) 38-1/2 (978) 38-1/2 (978)
Drawers Drawer Banks 3 2 2 1
Drawer Count 18 11 13 7
Widest Drawer, inches (mm) 35 (880) 48 (1,219) 35 (880) 35 (880)
Slides, lb (kg) (ball bearing) 120 (54) 120 (54) 120 (54) 120 (54)
Double Slides Yes (1 drawer) Yes (1 drawer) Yes (1 drawer) Yes (1 drawer)
Extras Top Mat Unidirectional Rubber Unidirectional Rubber Unidirectional Rubber Unidirectional Rubber
Weight Net Weight, lb (kg) 371 (168) 349 (158) 297 (135) 275 (125)
Shipping Weight, lb (kg) 454 (206) 400 (181) 327 (148) 305 (138)
Optional Top Chest KRA5308F KRA5308F KRA4114F KRA4114F
Add-ons KRA4810F KRA4810F
KRA4820F KRA4820F KRA4820F KRA4820F
Side Cab
KRA4830F KRA4830F KRA4830F KRA4830F
Locker KRA5012F KRA5012F KRA5012F KRA5012F
Middle Drawer Section — — KRA4860F KRA4860F
Hardwood Top KRWT5300 KRWT5300 KRWT40F KRWT40F
Stainless steel Top KRSST5300 KRSST5300 KRSST40F KRSST40F

Colors Available Heritage Series units are available in five standard colors.
Blackout versions (black trim and logo) are available in
Gloss Royal Electric Storm Gray Red (BN), Gloss Black (BFI), Royal Blue (BET), Electric
Red Black Blue Orange Blk Trm Orange (BKH), and Storm Gray (PWZ).
PBO PC PCM PJK PWZ Add suffix to base stock number for special colors.
56

Snapon.com 1.877.762.7664

047-062 TS_old_039-051_Tool Storage.indd 56 12/10/19 10:18 AM
