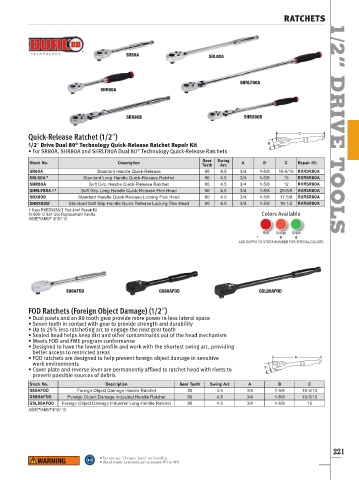

Page 223 - 实耐宝完整US版1500

RATCHETS

SR80A SRL80A 1/2”

SHRLF80A
SHR80A

SRX80B SHRX80B DRIVE

Quick-Release Ratchet (1/2ʺ)
®
1/2ʺ Drive Dual 80 Technology Quick-Release Ratchet Repair Kit
®
• For SR80A, SHR80A and SHRLF80A Dual 80 Technology Quick-Release Ratchets
Gear Swing
Stock No. Description A B C Repair Kit
Teeth Arc
SR80A Standard Handle Quick-Release 80 4.5 3/4 1-5/8 10-5/16 RKRSR80A
SRL80A * Standard Long Handle Quick-Release Ratchet 80 4.5 3/4 1-5/8 15 RKRSR80A
SHR80A Soft Grip Handle Quick-Release Ratchet 80 4.5 3/4 1-5/8 12 RKRSR80A
SHRLF80A †* Soft Grip Long Handle Quick-Release Flex Head 80 4.5 3/4 1-5/8 25-5/8 RKRSR80A
SRX80B Standard Handle Quick-Release Locking Flex Head 80 4.5 3/4 1-5/8 17-5/8 RKRSR80A TOOLS
SHRX80B † Standard Soft Grip Handle Quick-Release Locking Flex Head 80 4.5 3/4 1-5/8 18-1/2 RKRSR80A
† Uses RKRSX936JT Flex Joint Repair Kit
SH936-12 Soft Grip Replacement Handle. Colors Available
ASME /ANSI B107.10
®
®
Red Orange Green
* O G
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

S80AFOD GS80AFOD GSL80AFOD

FOD Ratchets (Foreign Object Damage) (1/2ʺ)
• Dual pawls and an 80 tooth gear provide more power in less lateral space
• Seven teeth in contact with gear to provide strength and durability
• Up to 25% less ratcheting arc to engage the next gear tooth
• Sealed head helps keep dirt and other contaminants out of the head mechanism
• Meets FOD and FME program conformance
• Designed to have the lowest profile and work with the shortest swing arc, providing
better access to restricted areas
• FOD ratchets are designed to help prevent foreign object damage in sensitive
work environments
• Cover plate and reverse lever are permanently affixed to ratchet head with rivets to
prevent possible sources of debris
Stock No. Description Gear Teeth Swing Arc A B C
S80AFOD Foreign Object Damage Handle Ratchet 80 4.5 3/4 1-5/8 10-5/16
GS80AFOD Foreign Object Damage Industrial Handle Ratchet 80 4.5 3/4 1-5/8 10-5/16
GSL80AFOD Foreign Object Damage Industrial Long Handle Ratchet 80 4.5 3/4 1-5/8 15
ASME /ANSI B107.10
®
®

221
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
