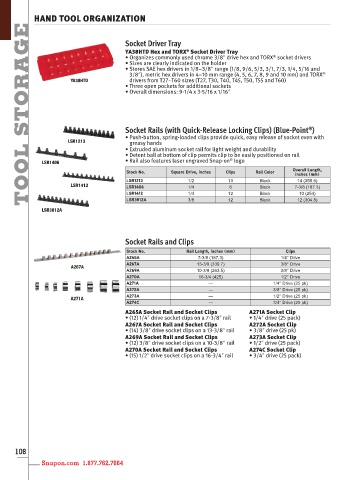

STORAGE HAND TOOL ORGANIZATION

Socket Driver Tray
®
YA38HTD Hex and TORX Socket Driver Tray
®
• Organizes commonly used chrome 3/8ʺ drive hex and TORX socket drivers
• Sizes are clearly indicated on the holder
• Stores SAE hex drivers in 1/8–3/8ʺ range (1/8, 9/6, 5/3, 3/1, 7/3, 1/4, 5/16 and
®
3/8ʺ), metric hex drivers in 4–10 mm range (4, 5, 6, 7, 8, 9 and 10 mm) and TORX
YA38HTD drivers from T27–T60 sizes (T27, T30, T40, T45, T50, T55 and T60)
• Three open pockets for additional sockets
• Overall dimensions: 9-1/4 x 3-5/16 x 1/16ʺ

Socket Rails (with Quick-Release Locking Clips) (Blue-Point )
®
• Push-button, spring-loaded clips provide quick, easy release of socket even with
LSR1213 • Extruded aluminum socket rail for light weight and durability
greasy hands
TOOL LSR1406 LSR1412 • Rail also features laser engraved Snap-on logo Rail Color Overall Length,
• Detent ball at bottom of clip permits clip to be easily positioned on rail
®
Square Drive, inches
Clips
Stock No.
inches (mm)
1/2
Black
14 (355.6)
13
LSR1213
Black
7-3/8 (187.3)
1/4
6
LSR1406
10 (254)
3/8
Black
12
LSR3812A
LSR3812A LSR1412 1/4 12 Black 12 (304.8)
Socket Rails and Clips
Stock No. Rail Length, inches (mm) Clips
A265A 7-3/8 (187.3) 1/4ʺ Drive
A267A 13-3/8 (339.7) 3/8ʺ Drive
A267A
A269A 10-3/8 (263.5) 3/8ʺ Drive
A270A 16-3/4 (425) 1/2ʺ Drive
A271A — 1/4ʺ Drive (25 pk)
A272A — 3/8ʺ Drive (25 pk)
A273A — 1/2ʺ Drive (25 pk)
A271A
A274C — 3/4ʺ Drive (25 pk)
A265A Socket Rail and Socket Clips A271A Socket Clip
• (12) 1/4ʺ drive socket clips on a 7-3/8ʺ rail • 1/4ʺ drive (25 pack)
A267A Socket Rail and Socket Clips A272A Socket Clip
• (14) 3/8ʺ drive socket clips on a 13-3/8ʺ rail • 3/8ʺ drive (25 pk)
A269A Socket Rail and Socket Clips A273A Socket Clip
• (12) 3/8ʺ drive socket clips on a 10-3/8ʺ rail • 1/2ʺ drive (25 pack)
A270A Socket Rail and Socket Clips A274C Socket Clip
• (15) 1/2ʺ drive socket clips on a 16-3/4ʺ rail • 3/4ʺ drive (25 pack)

108
