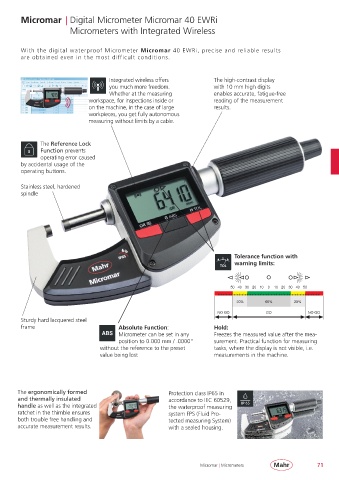

Page 75 - Mahr马尔量具完整

Micromar | Digital Micrometer Micromar 40 EWRi

Micrometers with Integrated Wireless

With the digital waterproof Micrometer Micromar 40 EWRi, precise and reliable results
are obtained even in the most difficult conditions.

Integrated wireless offers The high-contrast display
you much more freedom. with 10 mm high digits
Whether at the measuring enables accurate, fatigue-free
workspace, for inspections inside or reading of the measurement
on the machine, in the case of large results.
workpieces, you get fully autonomous
measuring without limits by a cable.

The Reference Lock
Function prevents
operating error caused
by accidental usage of the
operating buttons.

Stainless steel, hardened
spindle

Tolerance function with
warning limits:

Sturdy hard lacquered steel
frame Absolute Function: Hold:
Micrometer can be set in any Freezes the measured value after the mea-
position to 0.000 mm / .0000“ surement. Practical function for measuring
without the reference to the preset tasks, where the display is not visible, i.e.
value being lost measurements in the machine.

The ergonomically formed Protection class IP65 in
and thermally insulated accordance to IEC 60529,
handle as well as the integrated the waterproof measuring
ratchet in the thimble ensures system FPS (Fluid Pro-
both trouble free handling and tected measuring System)
accurate measurement results. with a sealed housing.

Micromar | Micrometers 71
