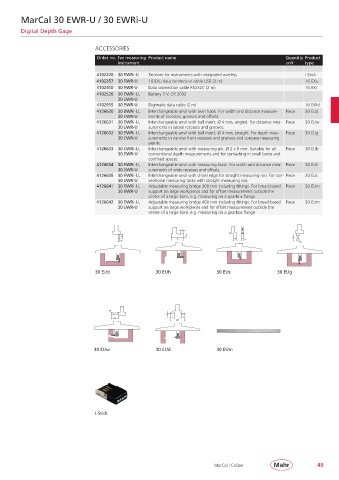

MarCal 30 EWR-U / 30 EWRi-U

Digital Depth Gage

ACCESSORIES
Order no. For measuring Product name Quantity Product
instrument unit type

4102220 30 EWRi-U Receiver for instruments with integrated wireless i-Stick
4102357 30 EWR-U 16 EXu data connection cable USB (2 m) 16 EXu
4102410 30 EWR-U Data connection cable RS232C (2 m) 16 EXr
4102520 30 EWRi-U, Battery 3 V, CR 2032
30 EWR-U
4102915 30 EWR-U Digimatic data cable (2 m) 16 EWd
4126630 30 EWRi-U, Interchangeable anvil with twin hook. For width and distance measure- Piece 30 EUd
30 EWR-U ments of recesses, grooves and offsets.
4126631 30 EWRi-U, Interchangeable anvil with ball insert, Ø 4 mm, angled. For distance mea- Piece 30 EUw
30 EWR-U surements in lateral recesses and grooves.
4126632 30 EWRi-U, Interchangeable anvil with ball insert, Ø 4 mm, straight. For depth mea- Piece 30 EUg
30 EWR-U surements in narrow front recesses and grooves and concave measuring
points.
4126633 30 EWRi-U, Interchangeable anvil with measuring pin, Ø 2 x 8 mm. Suitable for all Piece 30 EUb
30 EWR-U conventional depth measurements and for contacting in small bores and
confined spaces.
4126634 30 EWRi-U, Interchangeable anvil with measuring hook. For width and distance mea- Piece 30 EUh
30 EWR-U surements of wide recesses and offsets.
4126635 30 EWRi-U, Interchangeable anvil with chisel edge for straight measuring rod. For con- Piece 30 EUs
30 EWR-U ventional measuring tasks with straight measuring rod.
4126641 30 EWRi-U, Adjustable measuring bridge 300 mm including fittings. For broad-based Piece 30 EUm
30 EWR-U support on large workpieces and for offset measurement outside the
center of a large bore, e.g. measuring on a gearbox flange.
4126642 30 EWRi-U, Adjustable measuring bridge 400 mm including fittings. For broad-based Piece 30 EUm
30 EWR-U support on large workpieces and for offset measurement outside the
center of a large bore, e.g. measuring on a gearbox flange.

30 EUb 30 EUh 30 EUs 30 EUg

30 EUw 30 EUd 30 EUm

i-Stick
