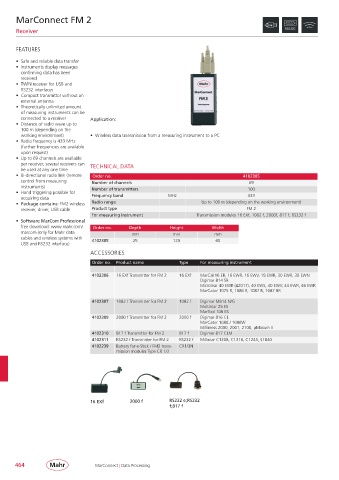

MarConnect FM 2

Receiver

FEATURES

• Safe and reliable data transfer
• Instruments display messages
confirming data has been
received
• TWIN receiver for USB and
RS232 interfaces
• Compact transmitter without an
external antenna
• Theoretically unlimited amount
of measuring instruments can be
connected to a receiver Application:
• Distance of radio wave up to
100 m (depending on the
working environment) • Wireless data transmission from a measuring instrument to a PC
• Radio frequency is 433 MHz
(further frequencies are available
upon request)
• Up to 69 channels are available
per receiver, several receivers can TECHNICAL DATA
be used at any one time
• Bi-directional radio link (remote Order no. 4102305
control from measuring Number of channels 69
instruments) Number of transmitters 100
• Hand triggering possible for Frequency band MHz 433
acquiring data
• Package contains: FM2 wireless Radio range Up to 100 m (depending on the working environment)
receiver, driver, USB cable Product type FM 2
For measuring instrument Transmission modules 16 EXf, 1082 f, 2000f, 817 f, RS232 f
• Software MarCom Professional
free download: www.mahr.com/ Order no. Depth Height Width
marcom (only for Mahr data mm mm mm
cables and wireless systems with 4102305 25 120 60
USB and RS232 interface)
ACCESSORIES
Order no. Product name Type For measuring instrument

4102306 16 EXf Transmitter for FM 2 16 EXf MarCal 16 ER, 16 EWR, 16 EWV, 18 EWR, 30 EWR, 30 EWN
Digimar 814 SR
Micromar 40 EWR (≤2017), 40 EWS, 40 EWV, 44 EWR, 46 EWR
MarCator 1075 R, 1086 R, 1087 R, 1087 BR

4102307 1082 f Transmitter for FM 2 1082 f Digimar M814 N/G
Multimar 25 ES
MarTool 106 ES
4102309 2000 f Transmitter for FM 2 2000 f Digimar 816 CL
MarCator 1088 / 1088W
Millimess 2000, 2001, 2100, µMaxum II
4102310 817 f Transmitter for FM 2 817 f Digimar 817 CLM
4102311 RS232 f Transmitter for FM 2 RS232 f Millimar C1208, C1216, C1245, S1840
4102239 Battery for e-Stick / FM2 trans- CR1/3N
mission modules Type CR 1/3

16 EXf 2000 f RS232 e;RS232
f;817 f

464 MarConnect | Data Processing
