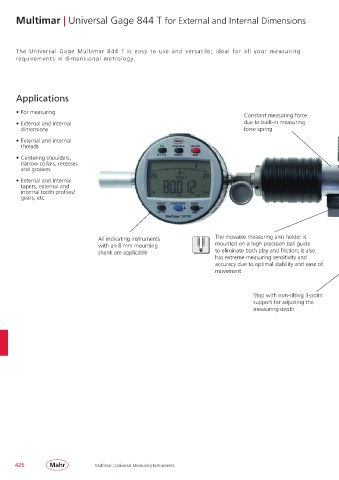

Multimar | Universal Gage 844 T for External and Internal Dimensions

The Universal Gage Multimar 844 T is easy to use and versatile; ideal for all your measuring
requirements in dimensional metrology.

Applications

• For measuring
Constant measuring force

• External and internal due to built-in measuring
dimensions force spring
• External and internal
threads

• Centering shoulders,
narrow collars, recesses
and grooves

• External and internal
tapers, external and
internal tooth profiles/
gears, etc.

All indicating instruments The movable measuring arm holder is
with an 8 mm mounting mounted on a high precision ball guide
shank are applicable to eliminate both play and friction; it also
has extreme measuring sensitivity and
accuracy due to optimal stability and ease of
movement

Stop with non-tilting 3-point
support for adjusting the
measuring depth

426 Multimar | Universal Measuring Instruments
