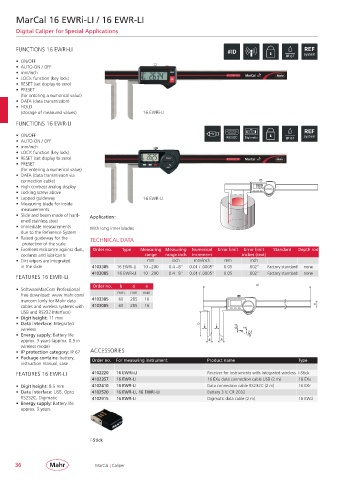

MarCal 16 EWRi-LI / 16 EWR-LI
       MarCal      16 EWRi-LI / 16 EWR-LI
       Digital Caliper for Special Applications


       FUNCTIONS 16 EWRI-LI

       •  ON/OFF
       •  AUTO-ON / OFF
       •  mm/inch
       •  LOCK function (key lock)
       •  RESET (set display to zero)
       •  PRESET
        (for entering a numerical value)
       •  DATA (data transmission)
       •  HOLD
        (storage of measured values)               16 EWRi-LI
       FUNCTIONS 16 EWR-LI

       •  ON/OFF
       •  AUTO-ON / OFF
       •  mm/inch
       •  LOCK function (key lock)
       •  RESET (set display to zero)
       •  PRESET
        (for entering a numerical value)
       •  DATA (data transmission via
        connection cable)
       •  High contrast analog display
       •  Locking screw above
       •  Lapped guideway                          16 EWR-LI
       •  Measuring blade for inside
        measurements
       •  Slide and beam made of hard-  Application:
        ened stainless steel
       •  Immediate measurements    With long inner blades
        due to the Reference System
       •  Raised guideway for the   TECHNICAL DATA
         protection of the scale
       •  Excellent resistance against dust,   Order no.  Type  Measuring  Measuring  Numerical   Error limit  Error limit   Standard  Depth rod
        coolants and lubricants                     range  range inch  increment      inches (text)
       •  Dirt wipers are integrated                 mm      inch    mm/inch    mm       inch
        in the slide             4103385  16 EWRi-LI  10 – 200  0.4 – 8”  0.01 / .0005”  0.05  .002”  Factory standard  none
                                 4103085  16 EWR-LI  10 – 200  0.4 – 8”  0.01 / .0005”  0.05  .002”  Factory standard  none
       FEATURES 16 EWRI-LI
                                  Order no.  b  d   e                                      d
       •  SoftwareMarCom Professional
        free download: www.mahr.com/      mm   mm  mm
        marcom (only for Mahr data   4103385  60  285  16
        cables and wireless systems with   4103085  60  285  16                                                 e
        USB and RS232 interface)
       •  Digit height: 11 mm
       •  Data interface: Integrated                                   b
        wireless
       •  Energy supply: Battery life
        approx. 3 years (approx. 0.5 in
        wireless mode)
       •  IP protection category: IP 67  ACCESSORIES
       •  Package contains: battery,   Order no.  For measuring instrument  Product name                  Type
        instruction manual, case

       FEATURES 16 EWR-LI        4102220  16 EWRi-LI                      Receiver for instruments with integrated wireless i-Stick
                                 4102357  16 EWR-LI                       16 EXu data connection cable USB (2 m)  16 EXu
       •  Digit height: 8.5 mm   4102410  16 EWR-LI                       Data connection cable RS232C (2 m)   16 EXr
       •  Data interface: USB, Opto   4102520  16 EWR-LI, 16 EWRi-LI      Battery 3 V, CR 2032
        RS232C, Digimatic        4102915  16 EWR-LI                       Digimatic data cable (2 m)      16 EWd
       •  Energy supply: Battery life
        approx. 3 years





                                 i-Stick



      36                          MarCal | Caliper
