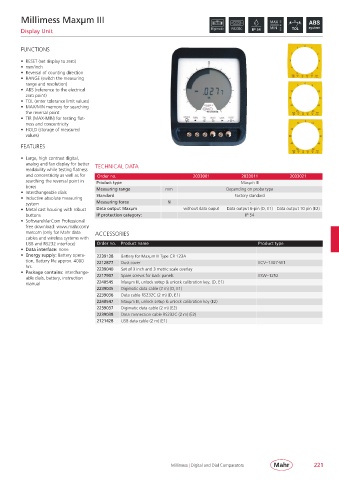

Millimess Maxµm III

Display Unit

FUNCTIONS

• RESET (set display to zero)
• mm/inch
• Reversal of counting direction
• RANGE (switch the measuring
range and resolution)
• ABS (reference to the electrical
zero point)
• TOL (enter tolerance limit values)
• MAX/MIN memory for searching
the reversal point
• TIR (MAX-MIN) for testing flat-
ness and concentricity
• HOLD (storage of measured
values)
FEATURES

• Large, high contrast digital,
analog and fan display for better TECHNICAL DATA
readability while testing flatness
and concentricity as well as for Order no. 2033001 2033011 2033021
searching the reversal point in Product type Maxµm III
bores Measuring range mm Depending on probe type
• Interchangeable dials Standard Factory standard
• Inductive absolute measuring
system Measuring force N -
• Metal cast housing with robust Data output Maxµm without data ouput Data output 6-pin (D, E1) Data output 10 pin (E2)
buttons IP protection category: IP 54
• SoftwareMarCom Professional
free download: www.mahr.com/
marcom (only for Mahr data ACCESSORIES
cables and wireless systems with
USB and RS232 interface) Order no. Product name Product type
• Data interface: none
• Energy supply: Battery opera- 2239138 Battery for Maxµm III Type CR 123A
tion, Battery life approx. 4000 2212877 Dust cover ECV– 1307-W1
hrs. 2239040 Set of 3 inch and 3 metric scale overlay
• Package contains: interchange-
able dials, battery, instruction 2217907 Spare screws for back panels ESW– 1252
manual 2240545 Maxµm III, unlock setup & unlock calibration key, (D, E1)
2239035 Digimatic data cable (2 m) (D, E1)
2239036 Data cable RS232C (2 m) (D, E1)
2240547 Maxµm III, unlock setup & unlock calibration key (E2)
2239037 Digimatic data cable (2 m) (E2)
2239038 Data connection cable RS232C (2 m) (E2)
2121428 USB data cable (2 m) (E1)

Millimess | Digital and Dial Comparators 221
