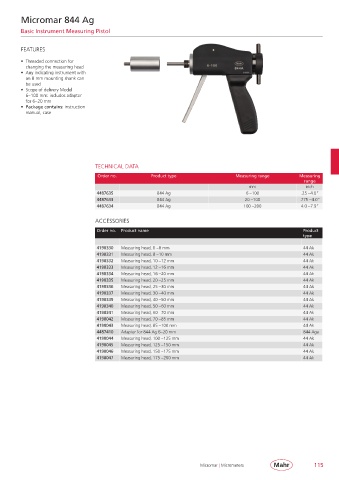

Micromar 844 Ag

Basic Instrument Measuring Pistol

FEATURES

• Threaded connection for
changing the measuring head
• Any indicating instrument with
an 8 mm mounting shank can
be used
• Scope of delivery Model
6– 100 mm: includes adapter
for 6– 20 mm
• Package contains: instruction
manual, case

TECHNICAL DATA
Order no. Product type Measuring range Measuring
range
mm inch
4487635 844 Ag 6 – 100 .25 – 4.0”
4487633 844 Ag 20 – 100 .775 – 4.0”
4487634 844 Ag 100 – 200 4.0 – 7.9”

ACCESSORIES
Order no. Product name Product
type

4190330 Measuring head, 6 – 8 mm 44 Ak
4190331 Measuring head, 8 – 10 mm 44 Ak
4190332 Measuring head, 10 – 12 mm 44 Ak
4190333 Measuring head, 12 – 16 mm 44 Ak
4190334 Measuring head, 16 – 20 mm 44 Ak
4190335 Measuring head, 20 – 25 mm 44 Ak
4190336 Measuring head, 25 – 30 mm 44 Ak
4190337 Measuring head, 30 – 40 mm 44 Ak
4190339 Measuring head, 40 – 50 mm 44 Ak
4190340 Measuring head, 50 – 60 mm 44 Ak
4190341 Measuring head, 60 – 70 mm 44 Ak
4190042 Measuring head, 70 – 85 mm 44 Ak
4190043 Measuring head, 85 – 100 mm 44 Ak
4487410 Adapter for 844 Ag 6– 20 mm 844 Aga
4190044 Measuring head, 100 – 125 mm 44 Ak
4190045 Measuring head, 125 – 150 mm 44 Ak
4190046 Measuring head, 150 – 175 mm 44 Ak
4190047 Measuring head, 175 – 200 mm 44 Ak

Micromar | Micrometers 115
