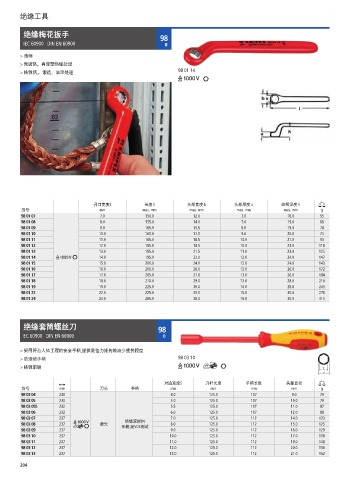

98
IEC 60900 DIN EN 60900 0

>
>
98 01 14
> ,

S l b a h
货号 mm max. mm max. mm max. mm max. mm g
98 01 07 7.0 150.0 12.0 7.0 18.0 55
98 01 08 8.0 155.0 14.0 7.0 19.0 68
98 01 09 9.0 165.0 15.5 8.0 19.0 78
98 01 10 10.0 160.0 17.0 9.0 20.0 75
98 01 11 11.0 165.0 18.5 10.0 21.0 93
98 01 12 12.0 185.0 18.5 10.0 23.0 118
98 01 13 13.0 185.0 21.5 11.0 23.0 125
98 01 14 14.0 195.0 23.0 12.0 24.0 147
98 01 15 15.0 200.0 24.0 12.0 24.0 143
98 01 16 16.0 200.0 26.0 12.0 26.0 172
98 01 17 17.0 205.0 27.0 13.0 26.0 184
98 01 18 18.0 210.0 29.0 13.0 28.0 210
98 01 19 19.0 225.0 30.0 14.0 28.0 245
98 01 22 22.0 225.0 35.0 15.0 30.0 278
98 01 24 24.0 265.0 38.0 16.0 30.0 415

98
EC 60900 DIN EN 60900 0

> ,
> 98 03 10
> S
d
S
货号 mm mm mm mm mm g
98 03 04 230 4.0 125.0 107 9.0 70
98 03 05 230 5.0 125.0 107 10.0 70
98 03 055 232 5.5 125.0 107 11.0 87
98 03 06 232 6.0 125.0 107 12.0 88
98 03 07 237 7.0 125.0 112 14.0 123
98 03 08 237 , VDE 8.0 125.0 112 15.0 125
98 03 09 237 9.0 125.0 112 16.0 129
98 03 10 237 10.0 125.0 112 17.0 118
98 03 11 237 11.0 125.0 112 19.0 148
98 03 12 237 12.0 125.0 112 20.0 150
98 03 13 237 13.0 125.0 112 21.0 152
204
