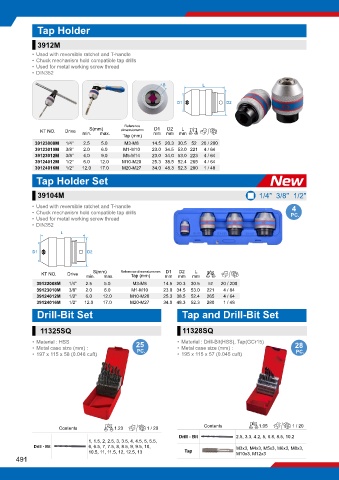

Page 532 - 蓝带金统立KINGTONY2025年样本

Tap Holder

3912M
• Used with reversible ratchet and T-handle
• Chuck mechanism hold compatible tap drills
• Used for metal working screw thread
• DIN352

S L

D1 D2

Reference
D1
D2
S(mm)
L
KT NO. Drive min. max. dimensionsmm mm mm mm g
Tap (mm)
39123008M 1/4" 2.5 5.0 M3-M8 14.5 20.3 30.5 52 20 / 200
39123010M 3/8" 2.0 6.0 M1-M10 23.0 34.5 53.0 221 4 / 64
39123012M 3/8" 4.0 9.0 M5-M14 23.0 34.0 53.0 223 4 / 64
39124012M 1/2" 6.0 12.0 M10-M20 25.3 38.5 52.4 265 4 / 64
39124016M 1/2" 12.0 17.0 M20-M27 34.0 48.3 52.3 280 1 / 48
Tap Holder Set

39104M 1/4" 3/8'' 1/2''
• Used with reversible ratchet and T-handle 4
• Chuck mechanism hold compatible tap drills PC.
• Used for metal working screw thread
• DIN352
L

D1 D2

L
S(mm)
D2
D1
KT NO. Drive min. max. Reference dimensionsmm mm mm mm Kg
Tap (mm)
39122008M 1/4" 2.5 5.0 M3-M8 14.5 20.3 30.5 52 20 / 200
39123010M 3/8" 2.0 6.0 M1-M10 23.0 34.5 53.0 221 4 / 64
39124012M 1/2" 6.0 12.0 M10-M20 25.3 38.5 52.4 265 4 / 64
39124016M 1/2" 12.0 17.0 M20-M27 34.0 48.3 52.3 280 1 / 48
Drill-Bit Set Tap and Drill-Bit Set
11325SQ 11328SQ

• Material : HSS 25 • Material : Drill-Bit(HSS), Tap(GCr15) 28
• Metal case size (mm) : • Metal case size (mm) :
• 197 x 115 x 58 (0.046 cuft) PC. • 195 x 115 x 57 (0.045 cuft) PC.

Contents kg 1.23 1 / 20 Contents kg 1.05 1 / 20
Drill - Bit 2.5, 3.3, 4.2, 5, 6.8, 8.5, 10.2
1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5,
Drill - Bit 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, M3x3, M4x3, M5x3, M6x3, M8x3,
10.5, 11, 11.5, 12, 12.5, 13 Tap M10x3, M12x3
491
