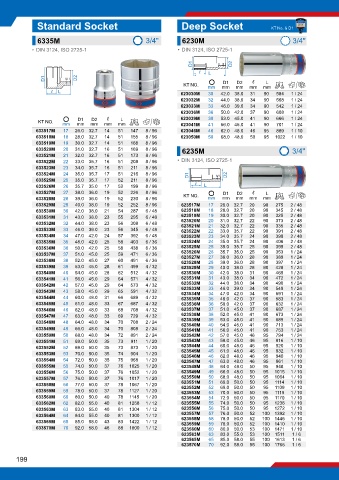

Page 240 - 蓝带金统立KINGTONY2025年样本

Standard Socket Deep Socket KT No. & D1

6335M 3/4" 6230M 3/4"
• DIN 3124, ISO 2725-1 • DIN 3124, ISO 2725-1

D1 D2
l L
D1 D2
D2
L
ℓ
D1
KT NO. mm mm mm mm mm g
l L 623030M 30 42.0 38.0 31 90 584 1 / 24
623032M 32 44.0 38.0 34 90 568 1 / 24
623033M 33 46.0 39.0 34 90 542 1 / 24
623036M 36 50.0 42.0 37 90 608 1 / 24
D2
D1
L
ℓ
KT NO. mm mm mm mm mm g 623039M 39 53.0 45.0 41 90 666 1 / 24
90
41
701
623041M
45.0
56.0
1 / 24
41
633517M 17 26.0 32.7 14 51 147 8 / 96 623046M 46 62.0 48.0 46 95 889 1 / 10
633518M 18 28.0 32.7 14 51 155 8 / 96 623050M 50 68.0 48.0 50 95 1022 1 / 10
633519M 19 30.0 32.7 14 51 168 8 / 96
633520M 20 31.0 32.7 16 51 169 8 / 96 6235M 3/4"
633521M 21 32.0 32.7 16 51 173 8 / 96
633522M 22 33.0 35.7 16 51 208 8 / 96 • DIN 3124, ISO 2725-1
633523M 23 34.0 35.7 16 51 211 8 / 96
633524M 24 35.0 35.7 17 51 216 8 / 96 D1 D2
633525M 25 35.0 35.7 17 52 211 8 / 96
633526M 26 35.7 35.0 17 52 199 8 / 96 l L
633527M 27 38.0 36.0 19 52 226 8 / 96 D1 D2 ℓ L g
633528M 28 39.0 36.0 19 52 230 8 / 96 KT NO. mm mm mm mm mm
633529M 29 40.0 38.0 19 52 252 8 / 96 623517M 17 26.0 32.7 20 90 275 2 / 48
633530M 30 42.0 38.0 21 54 287 6 / 48 623518M 18 28.0 32.7 20 90 345 2 / 48
633531M 31 43.0 38.0 23 55 295 6 / 48 623519M 19 30.0 32.7 20 90 325 2 / 48
633532M 32 44.0 38.0 23 56 308 6 / 48 623520M 20 31.0 32.7 22 90 373 2 / 48
21
335
32.7
623521M
32.0
22
90
2 / 48
633533M 33 46.0 39.0 23 56 345 6 / 48 623522M 22 33.0 35.7 22 90 391 2 / 48
633534M 34 47.0 42.0 24 57 392 6 / 48 623523M 23 34.0 35.7 24 90 390 2 / 48
633535M 35 48.0 42.0 25 58 403 6 / 36 623524M 24 35.0 35.7 24 90 406 2 / 48
633536M 36 50.0 42.0 25 58 438 6 / 36 623525M 25 35.0 35.7 25 90 399 2 / 48
633537M 37 51.0 45.0 25 59 471 6 / 36 623526M 26 35.7 35.0 25 90 353 1 / 24
90
27
623527M
38.0
28
36.0
389
1 / 24
633538M 38 52.0 45.0 27 60 491 6 / 36 623528M 28 39.0 36.0 28 90 397 1 / 24
633539M 39 53.0 45.0 28 61 499 4 / 32 623529M 29 40.0 38.0 28 90 428 1 / 24
633540M 40 54.0 45.0 28 62 512 4 / 32 623530M 30 42.0 38.0 31 90 469 1 / 24
633541M 41 56.0 45.0 29 64 571 4 / 32 623531M 31 43.0 38.0 34 90 472 1 / 24
633542M 42 57.0 45.0 29 64 573 4 / 32 623532M 32 44.0 38.0 34 90 490 1 / 24
633543M 43 58.0 45.0 29 65 591 4 / 32 623533M 33 46.0 39.0 34 90 549 1 / 24
42.0
47.0
34
34
1 / 24
623534M
90
591
633544M 44 60.0 48.0 31 66 689 4 / 32 623535M 35 48.0 42.0 37 90 583 1 / 24
633545M 45 61.0 48.0 33 67 687 4 / 32 623536M 36 50.0 42.0 37 90 632 1 / 24
633546M 46 62.0 48.0 33 68 708 4 / 32 623537M 37 51.0 45.0 37 90 687 1 / 24
633547M 47 63.0 48.0 33 69 729 4 / 32 623538M 38 52.0 45.0 41 90 673 1 / 24
633548M 48 64.0 48.0 34 70 708 2 / 24 623539M 39 53.0 45.0 41 90 689 1 / 24
41
54.0
1 / 24
90
623540M
713
45.0
40
633549M 49 66.0 48.0 34 70 808 2 / 24 623541M 41 56.0 45.0 41 90 753 1 / 24
633550M 50 68.0 48.0 34 72 891 2 / 24 623542M 42 57.0 45.0 46 95 794 1 / 24
633551M 51 69.0 50.0 35 73 911 1 / 20 623543M 43 58.0 45.0 46 95 816 1 / 10
633552M 52 69.0 50.0 35 73 873 1 / 20 623544M 44 60.0 48.0 46 95 920 1 / 10
633553M 53 70.0 50.0 35 74 904 1 / 20 623545M 45 61.0 48.0 46 95 932 1 / 10
940
95
1 / 10
46
62.0
46
623546M
48.0
633554M 54 72.0 50.0 35 75 968 1 / 20 623547M 47 63.0 48.0 46 95 961 1 / 10
633555M 55 74.0 50.0 37 76 1025 1 / 20 623548M 48 64.0 48.0 50 95 948 1 / 10
633556M 56 75.0 50.0 37 76 1052 1 / 20 623549M 49 66.0 48.0 50 95 1015 1 / 10
633557M 57 76.0 50.0 37 76 1017 1 / 20 623550M 50 68.0 48.0 50 95 1064 1 / 10
633558M 58 77.0 50.0 37 78 1067 1 / 20 623551M 51 69.0 50.0 50 95 1114 1 / 10
1 / 10
623552M
1109
95
52
50
69.0
50.0
633559M 59 78.0 50.0 37 78 1127 1 / 20 623553M 53 70.0 50.0 50 95 1119 1 / 10
633560M 60 80.0 50.0 40 78 1145 1 / 20 623554M 54 72.0 50.0 50 95 1170 1 / 10
633562M 62 82.0 55.0 40 81 1258 1 / 12 623555M 55 74.0 50.0 50 95 1236 1 / 10
633563M 63 83.0 55.0 40 81 1304 1 / 12 623556M 56 75.0 50.0 50 95 1272 1 / 10
633564M 64 84.0 55.0 40 81 1300 1 / 12 623557M 57 76.0 50.0 52 100 1392 1 / 10
623558M
633565M 65 85.0 58.0 43 83 1422 1 / 12 623559M 58 78.0 50.0 52 100 1446 1 / 10
59
78.0
1 / 10
50.0
100
1410
52
633570M 70 92.0 58.0 46 88 1800 1 / 12 623560M 60 80.0 50.0 53 100 1471 1 / 10
623563M 63 83.0 55.0 53 100 1511 1 / 6
623565M 65 85.0 58.0 55 100 1613 1 / 6
623570M 70 92.0 58.0 55 100 1766 1 / 6
199
