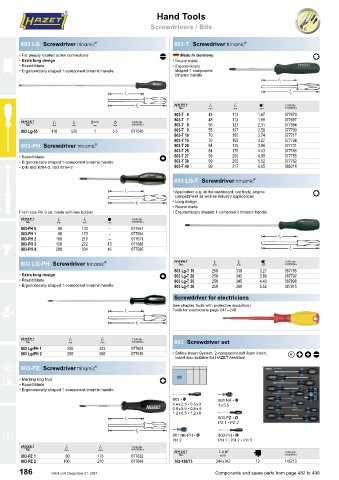

Page 187 - HAZET英文2021

Hand Tools Hand Tools

Screwdrivers / Bits Screwdrivers / Bits

803 LG Screwdriver j 803-T Screwdriver j

• For deeply located screw connections K Made in Germany N
• Extra long design • Round blade
• Round blade • Ergonomically
• Ergonomically shaped 1-component trinamic handle shaped 1-component
trinamic handle

1 M N r 4
803-T 6 48 112 1.67 077670
1 M N G 5 4 803-T 7 48 112 1.99 077687
077694
2.31
127
55
803-T 8
803 Lg-55 410 520 1 5.5 077540 803-T 9 55 127 2.50 077700
803-T 10 70 150 2.74 077717
803-T 15 70 150 3.27 077724
803-PH Screwdriver j 803-T 20 84 175 3.86 077731
803-T 25 84 175 4.43 077748
• Round blade L 803-T 27 99 200 4.99 077755
• Ergonomically shaped 1-component trinamic handle 803-T 30 99 200 5.52 077762
• DIN ISO 8764-2, ISO 8764-2 803-T 40 99 217 6.65 086214
803 LG-T Screwdriver j
• Application e.g. at the dashboard, car body, engine N
compartment as well as industry applications
• Long design
• Round blade
From size PH 3 on, blade with hex bolster • Ergonomically shaped 1-component trinamic handle
1 M N h 4
803-PH 0 60 140 – 077557
803-PH 1 80 173 – 077564
803-PH 2 100 210 – 077571
803-PH 3 150 272 13 077588
803-PH 4 200 334 16 077595

803 LG-PH Screwdriver j 1 M N r 4
803 Lg-T 15 250 330 3.27 087785
• Extra long design L 803 Lg-T 20 250 343 3.86 087792
• Round blade 803 Lg-T 25 250 345 4.43 087808
• Ergonomically shaped 1-component trinamic handle 803 Lg-T 30 250 360 5.52 087815
Screwdriver for electricians
See chapter Tools with protective insulation /
Tools for electricians page 247 – 248

1 M N 4 803 Screwdriver set

803 Lg-PH 1 250 343 077601
803 Lg-PH 2 250 360 077618 • Safety-Insert-System, 2-component soft foam insert. / MLK
Insert also suitable for HAZET Assistent
803-PZ Screwdriver j
• Marking ring blue M
• Round blade
• Ergonomically shaped 1-component trinamic handle
803 • K 801 NK • K
0.4 x 2.5 • 0.5 x 3 1 x 5.5
0.6 x 3.5 • 0.8 x 4
1.2 x 6.5 • 1.2 x 8
803-PZ • M
PZ 1 • PZ 2

801 NK-PH • L 803-PH • L
PH 2 PH 1 • PH 2 • PH 3
1 M N 4
mm
803-PZ 1 80 173 077632 1 L x W è 4
803-PZ 2 100 210 077649 163-100/13 344 x 342 13 145713
186 Valid until December 31, 2021 Components and spare parts from page 482 to 490
