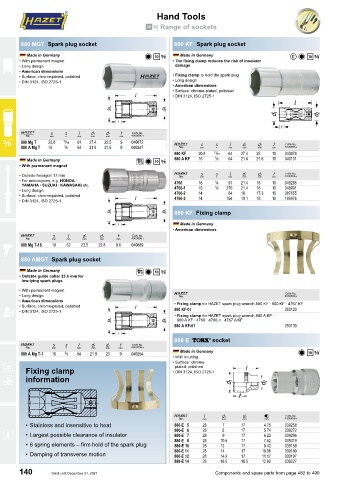

Page 141 - HAZET英文2021

Hand Tools Hand Tools

2 Range of sockets 2 Range of sockets

880 MGT Spark plug socket 880 KF Spark plug socket

Made in Germany c7 Made in Germany / c7
• With permanent magnet • The fixing clamp reduces the risk of insulator
• Long design damage
• American dimensions
• Surface: chrome-plated, polished • Fixing clamp to hold the spark plug
• DIN 3124, ISO 2725-1 • Long design
• American dimensions
• Surface: chrome-plated, polished
• DIN 3124, ISO 2725-1

1 S T K G H c 4
3 ⁄8 880 Mg T 20.8 13 5 ⁄16 64 27.4 22.5 9 9 040872 1 S T K G H c 4
64
16
21.6
880 A Mg T
21.6
040247
⁄8
880 KF 20.8 13 ⁄16 64 27.4 25 10 040674
Made in Germany I c7 880 A KF 16 5 ⁄8 64 21.6 21.6 10 040131
• With permanent magnet
1 4
• Outside hexagon 17 mm S T K G H c
• For motorcycles, e.g. HONDA ∙ 4766 16 5 ⁄8 97 21.4 18 10 049295
YAMAHA ∙ SUZUKI ∙ KAWASAKI etc. 4766-1 16 5 270 21.4 18 10 048991
• Long design 4766-2 14 ⁄8 64 18 17.3 10 087655
• Surface: chrome-plated, polished 4766-3 14 154 19.1 18 10 199976
• DIN 3124, ISO 2725-1
880 KF Fixing clamp
Made in Germany
• American dimensions
1 S K G H c 4
880 Mg T-18 18 62 23.5 22.8 9.6 040889

880 AMGT Spark plug socket

Made in Germany I c7
• Outside guide collar 23.6 mm for
low-lying spark plugs
• With permanent magnet 1
• Long design 4
• American dimensions
• Surface: chrome-plated, polished • Fixing clamp for HAZET spark plug wrench 880 KF ∙ 900 KF ∙ 4767 KF
• DIN 3124, ISO 2725-1 880 KF-01 050123
• Fixing clamp for HAZET spark plug wrench 880 A KF ∙
900 A KF ∙ 4766 ∙ 4766-1 ∙ 4767 A KF
880 A KF-01 050130

1 S T K G H c 4 880 E h socket

880 A Mg T-1 16 5 ⁄8 64 21.9 21 9 040254 Made in Germany e7
• With knurling
• Surface: chrome-
plated, polished
Fixing clamp • DIN 3124, ISO 2725-1
information

1 K G H r 4
• Stainless and insensitive to heat 880-E 5 28 7 17 4.75 039258
880-E 6 28 8 17 5.74 039272
• Largest possible clearance of insulator 880-E 7 28 9 17 6.22 039296
880-E 8 28 10.5 17 7.52 039319
• 6 spring elements – firm hold of the spark plug 880-E 10 28 13 17 9.42 039159
880-E 11 28 14 17 10.08 039180
• Damping of transverse motion 880-E 12 28 14.9 17 11.17 039197
880-E 14 28 16.5 18.5 12.90 039227
140 Valid until December 31, 2021 Components and spare parts from page 482 to 490
