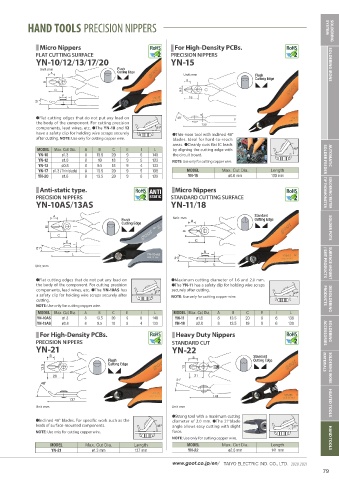

HAND TOOLS PRECISION NIPPERS SYSTEM SOLDERING

Micro Nippers RoHS For High-Density PCBs. RoHS
FLAT CUTTING SURFACE 2 PRECISION NIPPERS 2
YN-10/12/13/17/20 YN-15 SOLDERING IRONS

Unit :mm Flush
" Cutting Edge Unit :mm Flush
Cutting Edge
#
$
&
*
˃
-

lFlat cutting edges that do not put any load on ˃
the body of the component. For cutting precision
components, lead wires, etc. lThe YN-10 and 12 21
have a safety clip for holding wire scraps securely lThin-nose tool with inclined 48°
after cutting. NOTE: Use only for cutting copper wire. blades. Ideal for hard-to-reach
areas. lCleanly cuts flat IC leads
MODEL Max. Cut Dia. A B C E I L by aligning the cutting edge with 48
YN-10 ø1.3 8 13.5 20 9 6 140 the circuit board. AUTOMATIC
YN-12 ø1.0 8 10 18 9 5 133 NOTE: Use only for cutting copper wire. SOLDER FEEDER
YN-13 ø0.8 8 9.5 18 9 4 133
YN-17 ø1.3 (Thin blade) 8 13.5 20 9 5 138 MODEL Max. Cut Dia. Length
YN-20 ø1.6 8 13.5 20 9 6 139 YN-15 ø0.6 mm 130 mm

Anti-static type. RoHS ANTI Micro Nippers RoHS TIP THERMOMETER
PRECISION NIPPERS 2 STATIC STANDARD CUTTING SURFACE 2 SOLDERING TESTER
YN-10AS/13AS YN-11/18

" Unit :mm Standard
Flush Cutting Edge
Cutting Edge
# SOLDER POTS
$
&
*
˃
-

Unit :mm / SMT PRODUCTS SURFACE-MOUNT

lFlat cutting edges that do not put any load on lMaximum cutting diameter of 1.6 and 2.0 mm.
the body of the component. For cutting precision lThe YN-11 has a safety clip for holding wire scraps
components, lead wires, etc. lThe YN-10AS has 21 securely after cutting.
a safety clip for holding wire scraps securely after NOTE: Use only for cutting copper wire. 21 PRODUCTS
cutting. DESOLDERING
NOTE: Use only for cutting copper wire.
MODEL Max. Cut Dia. A B C E I L MODEL Max. Cut Dia. A B C E I L
YN-10AS ø1.3 8 13.5 20 9 6 140 YN-11 ø1.6 8 13.5 20 9 6 138
YN-13AS ø0.8 8 9.5 18 9 4 133 YN-18 ø2.0 8 13.5 19 9 6 138
For High-Density PCBs. RoHS Heavy Duty Nippers RoHS ACCESSORIES SOLDERING
PRECISION NIPPERS 2 STANDARD CUT 2
YN-21 YN-22
Standard
Flush Cutting Edge MATERIALS
Cutting Edge SOLDERING WORK

˃
˃

Unit :mm Unit :mm HEATED TOOLS
lStrong tool with a maximum cutting
lInclined 48° blades. For specific work such as the diameter of 2.0 mm. lThe 21°blade
leads of surface-mounted components. 48 angle allows easy cutting with slight 21
NOTE: Use only for cutting copper wire. force.
NOTE: Use only for cutting copper wire. HAND TOOLS
MODEL Max. Cut Dia. Length MODEL Max. Cut Dia. Length
YN-21 ø1.3 mm 137 mm YN-22 ø2.0 mm 141 mm

www.goot.co.jp/en/ 5"*:0 &-&$53*$ */% $0 -5% 2020-2021
79
