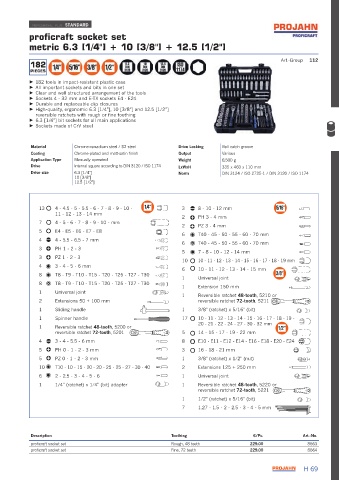

proficraft socket set
metric 6.3 [1/4"] + 10 [3/8"] + 12.5 [1/2"]
182 Art.-Group 112
PIECES
▶ 182 tools in impact-resistant plastic case
▶ All important sockets and bits in one set
▶ Clear and well structured arrangement of the tools
▶ Sockets 4 - 32 mm and E-TX sockets E4 - E24
▶ Durable and replaceable clip closures
▶ High-quality, ergonomic 6.3 [1/4"], 10 [3/8"] and 12.5 [1/2"]
reversible ratchets with rough or fine toothing
▶ 6.3 [1/4"] bit sockets for all main applications
▶ Sockets made of CrV steel
Material Chrome-vanadium steel / S2 steel Drive Locking Ball catch groove
Coating Chrome-plated and matt-satin finish Output Various
Application Type Manually operated Weight 8,500 g
Drive Internal square according to DIN 3120 / ISO 1174 LxWxH 335 x 460 x 110 mm
Drive size 6.3 [1/4"] Norm DIN 3124 / ISO 2725-1 / DIN 3120 / ISO 1174
10 [3/8"]
12.5 [1/2"]

13 4 - 4.5 - 5 - 5.5 - 6 - 7 - 8 - 9 - 10 - 3 8 - 10 - 12 mm
11 - 12 - 13 - 14 mm
2 PH 3 - 4 mm
7 4 - 5 - 6 - 7 - 8 - 9 - 10 - mm
2 PZ 3 - 4 mm
5 E4 - E5 - E6 - E7 - E8
6 T40 - 45 - 50 - 55 - 60 - 70 mm
4 4 - 5.5 - 6.5 - 7 mm
6 T40 - 45 - 50 - 55 - 60 - 70 mm
3 PH 1 - 2 - 3
5 7 - 8 - 10 - 12 - 14 mm
3 PZ 1 - 2 - 3
10 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 mm
4 3 - 4 - 5 - 6 mm
6 10 - 11 - 12 - 13 - 14 - 15 mm
8 T8 - T9 - T10 - T15 - T20 - T25 - T27 - T30
1 Universal joint
8 T8 - T9 - T10 - T15 - T20 - T25 - T27 - T30
1 Extension 150 mm
1 Universal joint
1 Reversible ratchet 48-tooth, 5210 or
2 Extensions 50 + 100 mm reversible ratchet 72-tooth, 5211
1 Sliding handle 1 3/8" (ratchet) x 5/16" (bit)
1 Spinner handle 17 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 -
20 - 21 - 22 - 24 - 27 - 30 - 32 mm
1 Reversible ratchet 48-tooth, 5200 or
reversible ratchet 72-tooth, 5201 5 14 - 15 - 17 - 19 - 22 mm
4 3 - 4 - 5.5 - 6 mm 8 E10 - E11 - E12 - E14 - E16 - E18 - E20 - E24
5 PH 0 - 1 - 2 - 3 mm 3 16 - 18 - 21 mm
5 PZ 0 - 1 - 2 - 3 mm 1 3/8" (ratchet) x 1/2" (nut)
10 T10 - 10 - 15 - 20 - 20 - 25 - 25 - 27 - 30 - 40 2 Extensions 125 + 250 mm
6 2 - 2.5 - 3 - 4 - 5 - 6 1 Universal joint
1 1/4" (ratchet) x 1/4" (bit) adapter 1 Reversible ratchet 48-tooth, 5220 or
reversible ratchet 72-tooth, 5221
1 1/2" (ratchet) x 5/16" (bit)
7 1.27 - 1.5 - 2 - 2.5 - 3 - 4 - 5 mm

Description Toothing €/Pc. Art.-No.
proficraft socket set Rough, 48 teeth 229.00 8663
proficraft socket set Fine, 72 teeth 229.00 8664
