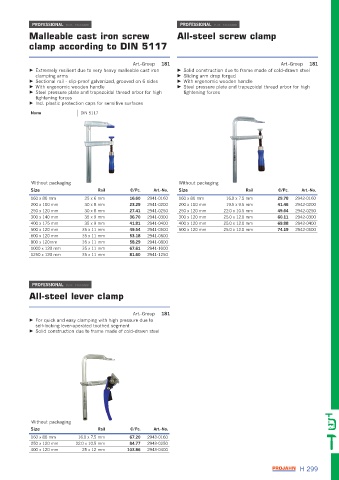

PROFESSIONAL PLUS STANDARD PROFESSIONAL PLUS STANDARD
Malleable cast iron screw All-steel screw clamp
clamp according to DIN 5117

Art.-Group 181 Art.-Group 181
▶ Extremely resilient due to very heavy malleable cast iron ▶ Solid construction due to frame made of cold-drawn steel
clamping arms ▶ Sliding arm drop forged
▶ Sectional rail - slip-proof galvanized, grooved on 6 sides ▶ With ergonomic wooden handle
▶ With ergonomic wooden handle ▶ Steel pressure plate and trapezoidal thread arbor for high
▶ Steel pressure plate and trapezoidal thread arbor for high tightening forces
tightening forces
▶ Incl. plastic protection caps for sensitive surfaces
Norm DIN 5117

Without packaging Without packaging
Size Rail €/Pc. Art.-No. Size Rail €/Pc. Art.-No.
160 x 80 mm 25 x 6 mm 16.60 2941-0160 160 x 80 mm 16.0 x 7.5 mm 29.78 2942-0160
200 x 100 mm 30 x 8 mm 23.29 2941-0200 200 x 100 mm 19.5 x 9.5 mm 41.46 2942-0200
250 x 120 mm 30 x 8 mm 27.41 2941-0250 250 x 120 mm 22.0 x 10.5 mm 49.64 2942-0250
300 x 140 mm 35 x 9 mm 36.70 2941-0300 300 x 120 mm 25.0 x 12.0 mm 60.11 2942-0300
400 x 175 mm 35 x 9 mm 41.81 2941-0400 400 x 120 mm 25.0 x 12.0 mm 69.88 2942-0400
500 x 120 mm 35 x 11 mm 49.54 2941-0500 500 x 120 mm 25.0 x 12.0 mm 74.19 2942-0500
600 x 120 mm 35 x 11 mm 53.18 2941-0600
800 x 120mm 35 x 11 mm 58.29 2941-0800
1000 x 120 mm 35 x 11 mm 67.61 2941-1000
1250 x 120 mm 35 x 11 mm 81.60 2941-1250

PROFESSIONAL PLUS STANDARD
All-steel lever clamp

Art.-Group 181
▶ For quick and easy clamping with high pressure due to
self-locking lever-operated toothed segment
▶ Solid construction due to frame made of cold-drawn steel

Without packaging
Size Rail €/Pc. Art.-No.
160 x 80 mm 16.0 x 7.5 mm 67.20 2943-0160
250 x 120 mm 22.0 x 10.5 mm 84.77 2943-0250
400 x 120 mm 25 x 12 mm 103.86 2943-0400

H 299
