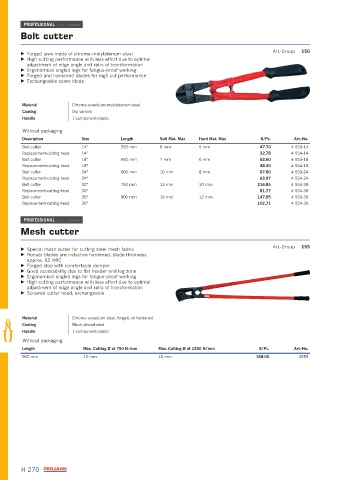

Page 272 - 德国Projahn2022

PROFESSIONAL PLUS STANDARD
Bolt cutter

Art.-Group 150
▶ Forged jaws made of chrome-molybdenum steel
▶ High cutting performance with less effort due to optimal
adjustment of edge angle and ratio of transformation
▶ Ergonomical angled legs for fatigue-proof working
▶ Forged and hardened blades for high cut performance
▶ Exchangeable spare blade

Material Chrome-vanadium-molybdenum-steel
Coating Dip varnish
Handle 1-component-plastic

Without packaging
Description Size Length Soft Mat. Max Hard Mat. Max €/Pc. Art.-No.
Bolt cutter 14“ 350 mm 6 mm 5 mm 47.70 4 553-14
Replacement-cutting head 14“ 32.78 4 554-14
Bolt cutter 18“ 450 mm 7 mm 6 mm 62.60 4 553-18
Replacement-cutting head 18“ 48.30 4 554-18
Bolt cutter 24“ 600 mm 10 mm 8 mm 87.80 4 553-24
Replacement-cutting head 24“ 63.97 4 554-24
Bolt cutter 30“ 750 mm 13 mm 10 mm 116.85 4 553-30
Replacement-cutting head 30“ 81.77 4 554-30
Bolt cutter 36“ 900 mm 16 mm 12 mm 147.95 4 553-36
Replacement-cutting head 36“ 102.71 4 554-36

PROFESSIONAL PLUS STANDARD
Mesh cutter

▶ Special mash cutter for cutting steel mesh fabric Art.-Group 155
▶ Robust blades are inductive hardened, blade thickness
approx. 62 HRC
▶ Forged stop with comfortable damper
▶ Good accessibility due to flat header and leg zone
▶ Ergonomical angled legs for fatigue-proof working
▶ High cutting performance with less effort due to optimal
adjustment of edge angle and ratio of transformation
▶ Screwed cutter head, exchangeable

Material Chrome vanadium steel, forged, oil hardened
Coating Black phosphated
Handle 1-component-plastic
Without packaging
Length Max. Cutting Ø at 750 N/mm Max. Cutting Ø at 1250 N/mm €/Pc. Art.-No.
900 mm 12 mm 10 mm 169.00 4555

H 270
