P. 198
PLUS
PROFESSIONAL
STANDARD
PROFESSIONAL PLUS STANDARD

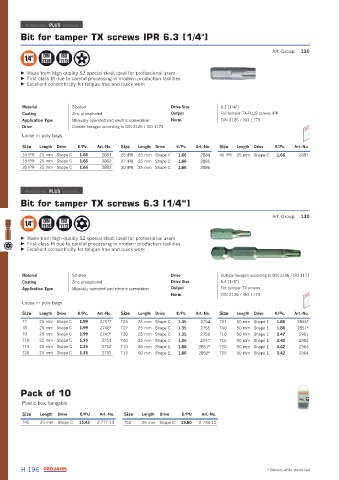

Bit for tamper TX screws IPR 6.3 [1/4"]
Art.-Group 130
▶ Made from high quality S2 special steel, ideal for professional users
▶ First-class fit due to careful processing in modern production facilities
▶ Excellent concentricity for fatigue-free and quick work
Material S2-steel Drive Size 6.3 [1/4"]
Coating Zinc phosphated Output For tamper TX-PLUS screws IPR
Application Type Manually operated and electric screwdriver Norm DIN 3126 / ISO 1173
Drive Outside hexagon according to DIN 3126 / ISO 1173
Loose in poly bags
Size Length Drive €/Pc. Art.-No. Size Length Drive €/Pc. Art.-No. Size Length Drive €/Pc. Art.-No.
10 IPR 25 mm Shape C 1.66 2881 25 IPR 25 mm Shape C 1.66 2884 40 IPR 25 mm Shape C 1.66 2887
15 IPR 25 mm Shape C 1.66 2882 27 IPR 25 mm Shape C 1.66 2885
20 IPR 25 mm Shape C 1.66 2883 30 IPR 25 mm Shape C 1.66 2886
PLUS
PROFESSIONAL
STANDARD
PROFESSIONAL PLUS STANDARD
Bit for tamper TX screws 6.3 [1/4“]
Art.-Group 130
▶ Made from high quality S2 special steel, ideal for professional users
▶ First-class fit due to careful processing in modern production facilities
▶ Excellent concentricity for fatigue-free and quick work
Material S2-steel Drive Outside hexagon according to DIN 3126 / ISO 1173
Coating Zinc phosphated Drive Size 6.3 [1/4"]
Application Type Manually operated and electric screwdriver Output For tamper TX screws
Norm DIN 3126 / ISO 1173
Loose in poly bags
Size Length Drive €/Pc. Art.-No. Size Length Drive €/Pc. Art.-No. Size Length Drive €/Pc. Art.-No.
T7 25 mm Shape C 1.99 2747* T25 25 mm Shape C 1.35 2754 T27 50 mm Shape E 1.86 2855*
T8 25 mm Shape C 1.99 2748* T27 25 mm Shape C 1.35 2755 T40 50 mm Shape E 1.86 2857*
T9 25 mm Shape C 1.99 2749* T30 25 mm Shape C 1.35 2756 T10 90 mm Shape E 3.42 2961
T10 25 mm Shape C 1.35 2751 T40 25 mm Shape C 1.35 2757 T15 90 mm Shape E 3.42 2962
T15 25 mm Shape C 1.35 2752 T10 50 mm Shape E 1.86 2851* T20 90 mm Shape E 3.42 2963
T20 25 mm Shape C 1.35 2753 T15 50 mm Shape E 1.86 2852* T25 90 mm Shape E 3.42 2964
Pack of 10
Plastic box, hangable
Size Length Drive €/PU Art.-No. Size Length Drive €/PU Art.-No.
T45 25 mm Shape C 15.43 2 777-10 T50 25 mm Shape C 15.80 2 778-10
H 196 * Delivery while stocks last
