PROFESSIONAL PLUS STANDARD

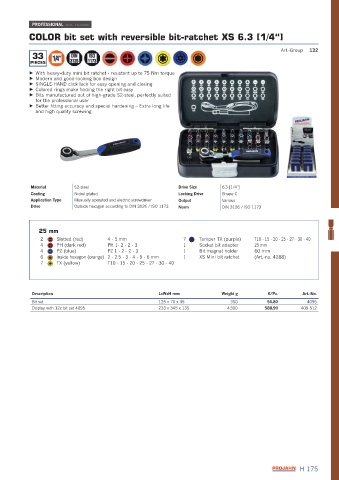

COLOR bit set with reversible bit-ratchet XS 6.3 [1/4“]

Art.-Group 132
33
PIECES
▶ With heavy-duty mini bit ratchet - resistant up to 75 Nm torque
▶ Modern and good-looking box design
▶ SINGLE-HAND click lock for easy opening and closing
▶ Colored rings make finding the right bit easy
▶ Bits manufactured out of high-grade S2-steel, perfectly suited
for the professional user
▶ Better fitting accuracy and special hardening – Extra long life
and high quality screwing

Material S2-steel Drive Size 6.3 [1/4"]
Coating Nickel plated Locking Drive Shape C
Application Type Manually operated and electric screwdriver Output Various
Drive Outside hexagon according to DIN 3126 / ISO 1173 Norm DIN 3126 / ISO 1173

25 mm
2 Slotted (red) 4 - 5 mm 7 Tamper TX (purple) T10 - 15 - 20 - 25 - 27 - 30 - 40
4 PH (dark red) PH 1- 2 - 2 - 3 1 Socket bit adapter 25 mm
4 PZ (blue) PZ 1 - 2 - 2 - 3 1 Bit magnet holder 60 mm
6 Inside hexagon (orange) 2 - 2.5 - 3 - 4 - 5 - 6 mm 1 XS Mini bit ratchet (Art.-no. 4288)
7 TX (yellow) T10 - 15 - 20 - 25 - 27 - 30 - 40

Description LxWxH mm Weight g €/Pc. Art.-No.
Bit set 125 x 70 x 35 350 50.80 4095
Display with 12x bit set 4095 233 x 345 x 135 4,500 588.90 409 512

H 175
