PROFESSIONAL PLUS STANDARD

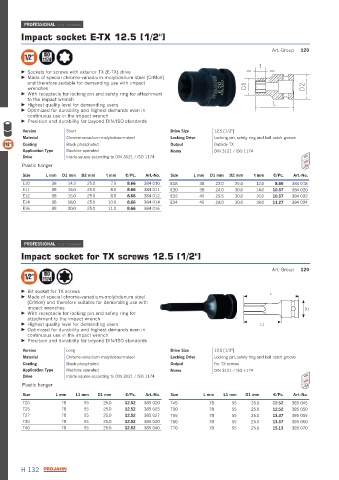

Impact socket E-TX 12.5 [1/2"]

Art.-Group 120

t
▶ Sockets for screws with exterior TX (E-TX) drive
▶ Made of special chrome-vanadium-molybdenum steel (CrMoV)
and therefore suitable for demanding use with impact
wrenches
▶ With receptacle for locking pin and safety ring for attachment
to the impact wrench
▶ Highest quality level for demanding users
▶ Optimized for durability and highest demands even in
continuous use in the impact wrench
▶ Precision and durability far beyond DIN/ISO standards
Version Short Drive Size 12.5 [1/2"]
Material Chrome-vanadium-molybdenum-steel Locking Drive Locking pin, safety ring and ball catch groove
Coating Black phosphated Output Outside TX
Application Type Machine operated Norm DIN 3121 / ISO 1174
Drive Inside square according to DIN 3121 / ISO 1174
Plastic hanger
Size L mm D1 mm D2 mm t mm €/Pc. Art.-No. Size L mm D1 mm D2 mm t mm €/Pc. Art.-No.
E10 38 14.2 25.0 7.5 8.66 384 010 E18 38 22.0 25.0 12.0 8.66 384 018
E11 38 15.0 25.0 8.0 8.66 384 011 E20 38 24.0 30.0 14.0 10.37 384 020
E12 38 16.0 25.0 8.5 8.66 384 012 E22 45 25.5 30.0 16.0 10.37 384 022
E14 38 18.0 25.0 10.0 8.66 384 014 E24 45 28.0 30.0 18.0 11.27 384 024
E16 38 20.0 25.0 11.0 8.66 384 016

PROFESSIONAL PLUS STANDARD
Impact socket for TX screws 12.5 [1/2"]

Art.-Group 120

▶ Bit socket for TX screws L
▶ Made of special chrome-vanadium-molybdenum steel
(CrMoV) and therefore suitable for demanding use with
impact wrenches D1
▶ With receptacle for locking pin and safety ring for
attachment to the impact wrench
▶ Highest quality level for demanding users L1
▶ Optimized for durability and highest demands even in
continuous use in the impact wrench
▶ Precision and durability far beyond DIN/ISO standards
Version Long Drive Size 12.5 [1/2"]
Material Chrome-vanadium-molybdenum-steel Locking Drive Locking pin, safety ring and ball catch groove
Coating Black phosphated Output For TX screws
Application Type Machine operated Norm DIN 3121 / ISO 1174
Drive Inside square according to DIN 3121 / ISO 1174
Plastic hanger
Size L mm L1 mm D1 mm €/Pc. Art.-No. Size L mm L1 mm D1 mm €/Pc. Art.-No.
T20 78 55 25.0 12.52 385 020 T45 78 55 25.0 12.52 385 045
T25 78 55 25.0 12.52 385 025 T50 78 55 25.0 12.52 385 050
T27 78 55 25.0 12.52 385 027 T55 78 55 25.0 13.37 385 055
T30 78 55 25.0 12.52 385 030 T60 78 55 25.0 13.37 385 060
T40 78 55 25.0 12.52 385 040 T70 78 55 25.0 15.13 385 070
