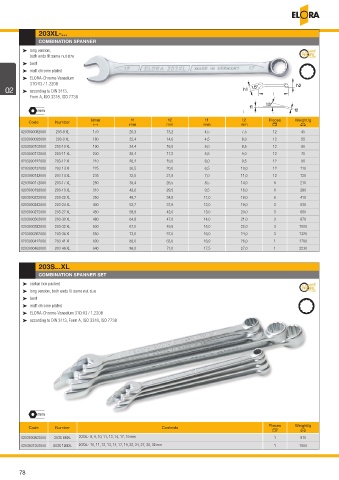

Page 78 - ELORA-Tool_Catalogue_E95

203XL-...
COMBINATION SPANNER

³ long version,
both ends fit same nut size
³ bent
³ matt chrome plated
³ ELORA-Chrome-Vanadium
31CrV3 / 1.2208
02 ³ according to DIN 3113,
Form A, ISO 3318, ISO 7738

l/mm h1 h2 t1 t2 Pieces Weight/g
Code Number  
T mm mm mm mm
0203000082000 203-8 XL 170 20,3 13,2 4,5 7,5 12 45
0203000092000 203-9 XL 180 22,4 14,6 4,5 8,0 12 55
0203000102000 203-10 XL 190 24,4 16,0 5,0 8,5 12 60
0203000112000 203-11 XL 200 26,4 17,2 5,5 9,0 12 75
0203000122000 203-12 XL 210 28,4 19,0 6,0 9,5 12 90
0203000132000 203-13 XL 225 30,5 20,0 6,5 10,0 12 110
0203000142000 203-14 XL 235 32,5 21,8 7,0 11,0 12 120
0203000172000 203-17 XL 280 38,4 26,5 8,5 14,0 6 210
0203000192000 203-19 XL 310 42,6 29,5 9,5 16,0 6 280
0203000222000 203-22 XL 350 48,7 34,5 11,0 18,0 6 410
0203000242000 203-24 XL 400 52,7 37,5 12,0 19,0 3 535
0203000272000 203-27 XL 450 58,9 42,0 13,0 20,0 3 680
0203000302000 203-30 XL 480 64,8 47,0 14,0 21,0 3 870
0203000322000 203-32 XL 500 67,0 49,5 15,0 22,0 3 1000
0203000362000 203-36 XL 550 73,0 57,0 16,0 24,0 3 1320
0203000412000 203-41 XL 600 86,0 63,0 16,0 26,0 1 1700
0203000462000 203-46 XL 640 96,0 71,0 17,5 27,0 1 2230

203S...XL
COMBINATION SPANNER SET
³ carton box packed
³ long version, both ends fit same nut size
³ bent
³ matt chrome plated
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
³ according to DIN 3113, Form A, ISO 3318, ISO 7738

Pieces Weight/g
Code Number Contents  
0203500802000 203S 8MXL 203XL- 8, 9, 10, 11, 13, 14, 17, 19 mm 1 915
0203501202000 203S 12MXL 203XL- 10, 11, 12, 13, 14, 17, 19, 22, 24, 27, 30, 32 mm 1 1500
