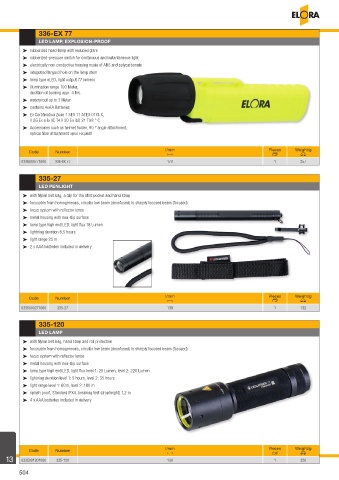

Page 504 - ELORA-Tool_Catalogue_E95

336-EX 77
LED LAMP, EXPLOSION-PROOF

³ rubberized head-lamp with reduced glare
³ rubberized-pressure switch for continuous and instantaneous light
³ electrically non-conductive housing made of ABS and polycarbonate
³ integrated lanyard hole on the lamp stem
³ lamp type eLED, light output 77 lumens
³ illumination range 100 Meter,
duration of burning appr. 4 hrs.
³ waterproof up to 3 Meter
³ contains 4xAA Batteries
³ Ex Certification Zone 1 SEV 11 ATEX 0174 X,
II 2G Ex e ib IIC T4 II 2D Ex ibD 21 T98 ° C
³ Accessories such as helmet holder, 90 ° angle attachment,
optical fiber attachment upon request

Code Number l/mm Pieces Weight/g
T U V
0336000771000 336-EX 77 170 1 257

335-27
LED PENLIGHT
³ with Nylon belt bag, a clip for the shirt pocket and hand strap
³ focusable from homogeneous, circular low beam (decofused) to sharply focused beam (focused)
³ focus system with reflector lense
³ metal housing with non-slip surface
³ lamp type high end LED, light flux 18 Lumen
³ lightning duration 8,5 hours
³ light range 25 m
³ 2 x AAA batteries included in delivery

Code Number l/mm Pieces Weight/g
T U V
0335000271000 335-27 138 1 132

335-120
LED LAMP
³ with Nylon belt bag, hand strap and roll protection
³ focusable from homogeneous, circular low beam (decofused) to sharply focused beam (focused)
³ focus system with reflector lense
³ metal housing with non-slip surface
³ lamp type high end LED, light flux level 1: 25 Lumen, level 2: 220 Lumen
³ lightning duration level 1: 5 hours, level 2: 35 hours
³ light range level 1: 60m, level 2: 180 m
³ splash proof, Standard IPX4, breaking test (dropheight) 1,2 m
³ 4 x AAA batteries included in delivery

Code Number l/mm Pieces Weight/g
T U V
13 0335001201000 335-120 130 1 326

504
