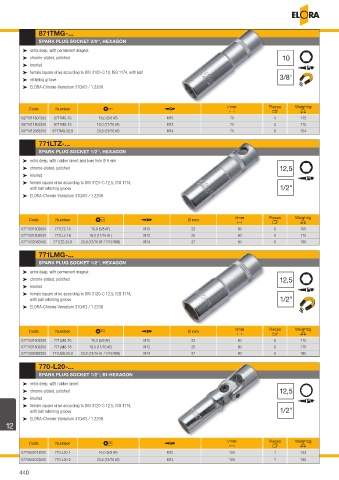

Page 440 - ELORA-Tool_Catalogue_E95

871TMG-...
SPARK PLUG SOCKET 3/8‘‘, HEXAGON

³ extra deep, with permanent magnet
³ chrome-plated, polished 10
³ knurled
³ female square drive according to DIN 3120-C 10, ISO 1174, with ball
³ retaining groove 3/8"
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208

Code Number w u l/mm Pieces Weight/g
V
U
T
0871011602300 871TMG-16 16,0 (5/8 AF) M10 70 6 115
0871011802300 871TMG-18 18,0 (11/16 AF) M12 70 6 115
0871012082300 871TMG-20,8 20,8 (13/16 AF) M14 70 6 154
771LTZ-...

SPARK PLUG SOCKET 1/2‘‘, HEXAGON
³ extra deep, with rubber insert and bore hole Ø 9 mm
³ chrome-plated, polished 12,5
³ knurled
³ female square drive according to DIN 3120-C 12,5, ISO 1174,
with ball retaining groove 1/2"
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208

Code Number w u Ø mm l/mm Pieces Weight/g
V
T
U
0771031602000 771LTZ-16 16,0 (5/8 AF) M10 22 80 6 165
0771031802000 771LTZ-18 18,0 (11/16 AF) M12 25 80 6 170
0771032082000 771LTZ-20,8 20,8 (13/16 AF / 7/16 WW) M14 27 80 6 180
771LMG-...
SPARK PLUG SOCKET 1/2‘‘, HEXAGON
³ extra deep, with permanent magnet
³ chrome-plated, polished 12,5
³ knurled
³ female square drive according to DIN 3120-C 12,5, ISO 1174,
with ball retaining groove 1/2"
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208

Code Number w u Ø mm l/mm Pieces Weight/g
V
U
T
0771031602300 771LMG-16 16,0 (5/8 AF) M10 22 80 6 170
0771031802300 771LMG-18 18,0 (11/16 AF) M12 25 80 6 175
0771032082300 771LMG-20,8 20,8 (13/16 AF / 7/16 WW) M14 27 80 6 185
770-L20-...

SPARK PLUG SOCKET 1/2‘‘, BI-HEXAGON
³ extra deep, with rubber insert
³ chrome-plated, polished 12,5
³ knurled
³ female square drive according to DIN 3120-C 12,5, ISO 1174,
with ball retaining groove 1/2"
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
12

Code Number w u l/mm Pieces Weight/g
V
U
T
0770602012000 770-L20-1 16,0 (5/8 AF) M10 100 1 193
0770602022000 770-L20-2 20,8 (13/16 AF) M14 100 1 185
440
