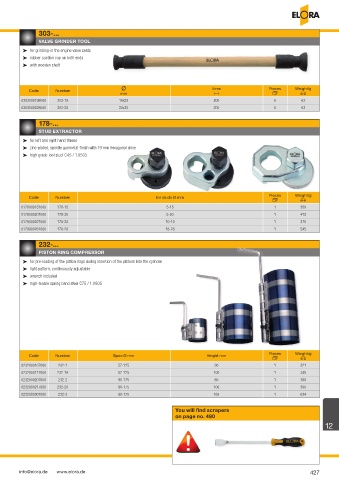

Page 427 - ELORA-Tool_Catalogue_E95

303-...
VALVE GRINDER TOOL

³ for grinding-in the engine valve seats
³ rubber suction cup on both ends
³ with wooden shaft

Ø l/mm Pieces Weight/g
Code Number
mm T U V
0303000198000 303-19 19x22 200 6 63
0303000228000 303-22 22x32 200 6 63

178-...
STUD EXTRACTOR
³ for left and right hand thread
³ zinc-plated, spindle gunmetal-finish with 19 mm hexagonal drive
³ high grade tool steel C45 / 1.0503

Code Number for studs Ø mm Pieces Weight/g
U V
0178000151000 178-15 5-15 1 359
0178000201000 178-20 5-20 1 412
0178000221000 178-22 10-19 1 370
0178000281000 178-28 18-28 1 545

232-...
PISTON RING COMPRESSOR
³ for pre-loading of the piston rings during insertion of the pistons into the cylinder
³ light pattern, continuously adjustable
³ wrench included
³ high-tensile spring band steel C75 / 1.0605

Code Number Span Ø mm Height mm Pieces Weight/g
U V
0232000107000 232-1 57-125 80 1 321
0232000117000 232-1A 57-125 100 1 345
0232000207000 232-2 90-175 80 1 360
0232000217000 232-2A 90-175 100 1 390
0232000307000 232-3 90-175 165 1 634

You will find scrapers
on page no. 480
12

info@elora.de www.elora.de 427
