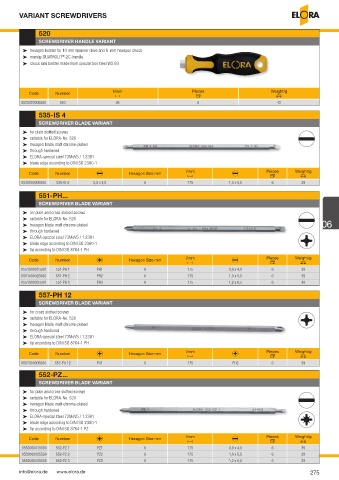

Page 275 - ELORA-Tool_Catalogue_E95

VARIANT SCREWDRIVERS

520
SCREWDRIVER HANDLE VARIANT

³ hexagon bolster for 10 mm spanner drive and 6 mm hexagon chuck
®
³ nonslip QUATROLIT -2C-handle
³ chuck and bolster made from special tool steel WX 69

l/mm Pieces Weight/g
Code Number  
T
0520020005500 520 95 6 42
535-IS 4
SCREWDRIVER BLADE VARIANT
³ for plain slotted screws
³ suitable for ELORA-No. 520
³ hexagon blade matt chrome-plated
³ through hardened
³ ELORA-special steel 73MoV5 / 1.2381
³ blade edge according to DIN ISO 2380-1
 l/mm  Pieces Weight/g
Code Number Hexagon Size mm T  
0535000405500 535-IS 4 0,8 x 4,0 6 175 1,0 x 5,5 6 39
551-PH...
SCREWDRIVER BLADE VARIANT
³ for plain and cross slotted screws
³ suitable for ELORA-No. 520
³ hexagon blade matt chrome-plated 06
³ through hardened
³ ELORA-special steel 73MoV5 / 1.2381
³ blade edge according to DIN ISO 2380-1
³ tip according to DIN ISO 8764-1 PH
 l/mm  Pieces Weight/g
Code Number Hexagon Size mm T  
0551000015500 551-PH 1 PH1 6 175 0,8 x 4,0 6 39
0551000025500 551-PH 2 PH2 6 175 1,0 x 5,5 6 39
0551000035500 551-PH 3 PH3 6 175 1,2 x 6,5 6 39

557-PH 12
SCREWDRIVER BLADE VARIANT
³ for cross slotted screws
³ suitable for ELORA-No. 520
³ hexagon blade matt chrome-plated
³ through hardened
³ ELORA-special steel 73MoV5 / 1.2381
³ tip according to DIN ISO 8764-1 PH
 l/mm  Pieces Weight/g
Code Number Hexagon Size mm T  
0557000005500 557-PH 12 PH1 6 175 PH2 6 39
552-PZ...
SCREWDRIVER BLADE VARIANT
³ for plain and cross slotted screws
³ suitable for ELORA-No. 520
³ hexagon blade matt chrome-plated
³ through hardened
³ ELORA-special steel 73MoV5 / 1.2381
³ blade edge according to DIN ISO 2380-1
³ tip according to DIN ISO 8764-1 PZ
 l/mm  Pieces Weight/g
Code Number Hexagon Size mm T  
0552000015500 552-PZ 1 PZ1 6 175 0,8 x 4,0 6 39
0552000025500 552-PZ 2 PZ2 6 175 1,0 x 5,5 6 39
0552000035500 552-PZ 3 PZ3 6 175 1,2 x 6,5 6 39
