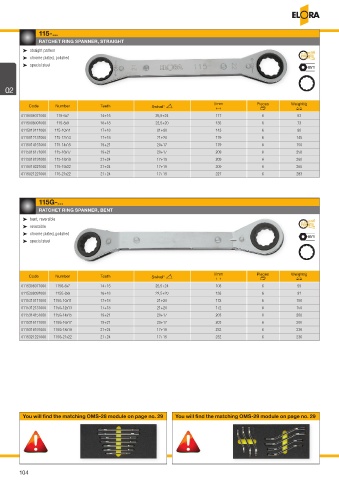

Page 104 - ELORA-Tool_Catalogue_E95

115-...
RATCHET RING SPANNER, STRAIGHT

³ straight pattern
³ chrome plated, polished
³ special steel

02

l/mm Pieces Weight/g
Code Number Teeth Swivel° T  
0115006071000 115-6x7 14+15 25,5+24 117 6 53
0115008091000 115-8x9 16+18 22,5+20 135 6 73
0115010111000 115-10x11 17+18 21+20 143 6 80
0115012131000 115-12x13 17+18 21+20 179 6 145
0115014151000 115-14x15 19+21 20+17 179 6 150
0115016171000 115-16x17 19+21 20+17 209 6 258
0115018191000 115-18x19 21+24 17+15 209 6 260
0115019221000 115-19x22 21+24 17+15 209 6 260
0115021221000 115-21x22 21+24 17+15 227 6 283

115G-...
RATCHET RING SPANNER, BENT

³ bent, reversible
³ reversible
³ chrome plated, polished
³ special steel

Code Number Teeth Swivel° l/mm Pieces Weight/g


T
0115306071000 115G-6x7 14+15 25,5+24 108 6 59
0115308091000 115G-8x9 16+18 22,5+20 138 6 91
0115310111000 115G-10x11 17+18 21+20 172 6 150
0115312131000 115G-12x13 17+18 21+20 172 6 150
0115314151000 115G-14x15 19+21 20+17 203 6 200
0115316171000 115G-16x17 19+21 20+17 203 6 200
0115318191000 115G-18x19 21+24 17+15 232 6 236
0115321221000 115G-21x22 21+24 17+15 232 6 236

You will find the matching OMS-28 module on page no. 29 You will find the matching OMS-29 module on page no. 29
